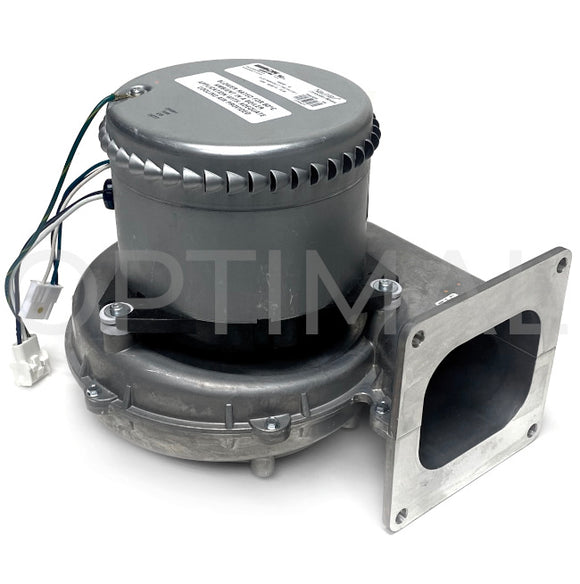

150232-16 Ametek Nautilair Brushless Blower 8.9" 120VAC 545 CFM 11 in.H2O
150232-16 Ametek Nautilair Brushless Blower 8.9" 120VAC 545 CFM 11 in.H2O

Product may differ slightly from picture.

150232-16 Ametek Nautilair Brushless Blower 8.9" 120VAC 545 CFM 11 in.H2O PWM

Ametek


1 Ready to Ship Today.




Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock brushless items ship same day, 4:30 pm EST cut-off. In-stock Rotron Regenerative blowers can ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for in-stock brushless and Rotron items for next-day and possibly SAME-DAY delivery, for domestic orders.

Out of stock items typically ship within 4-6 weeks. Some items currently have delayed lead-times due to global supply shortages.

Please contact us for quantity-based discounts.

PRODUCT DETAILS

The 150232-16 can be a replacement for 150232-07 blowers being used in Raypak and Camus boilers. The 150232-16 has internally powered tach out option card which allows the blowers to run on boilers with specific controllers.

Please contact our support team for help identifying the appropriate blower replacement.

Model

 Nautilair (8.9"/226mm)
Output  -
Voltage 120 VAC
Speed Control PWM
Speed Regulation Open Loop
Option Card Yes - internally powered
Stages 1
Flow Classification High Output
Discharge Size 5.50" x 5.50"
Performance Class High Output
Electrical Connections Three Flying Power Leads and Earth/Ground Wire with 3-Housing Connector with Pins; Three Flying Leads for PWM (No red wire on pin 1)
Skid Qty 32
Max Pressure 11 IWG
Max Flow 545 SCFM
