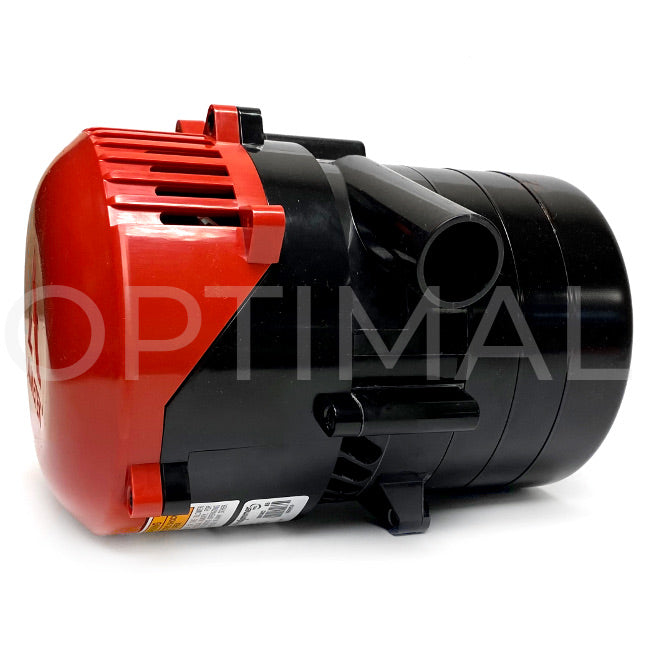

Ametek Windjammer PRO Brushless Blower 5.7" High Flow 120-240VAC, WP057BS4-0N22A-0004 4 stage from Optimal
Ametek Windjammer PRO Brushless Blower 5.7" High Flow 120-240VAC, WP057BS4-0N22A-0004 4 stage from Optimal
Ametek Windjammer PRO Brushless Blower 5.7" High Flow 120-240VAC, WP057BS4-0N22A-0004 4 stage from Optimal
Ametek Windjammer PRO Brushless Blower 5.7" High Flow 120-240VAC, WP057BS4-0N22A-0004 4 stage from Optimal

Product may differ slightly from picture.

Ametek Windjammer PRO Brushless Blower 5.7" Standard Flow 120-240VAC, WP057BS4-0N22A-0004

Ametek

2 in Stock, Ready to Ship.




Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders. Additional fees may apply for LTL residential shipments.

Out of stock items typically ship within 4-6 weeks.

Please contact us for quantity-based discounts.

PRODUCT DETAILS

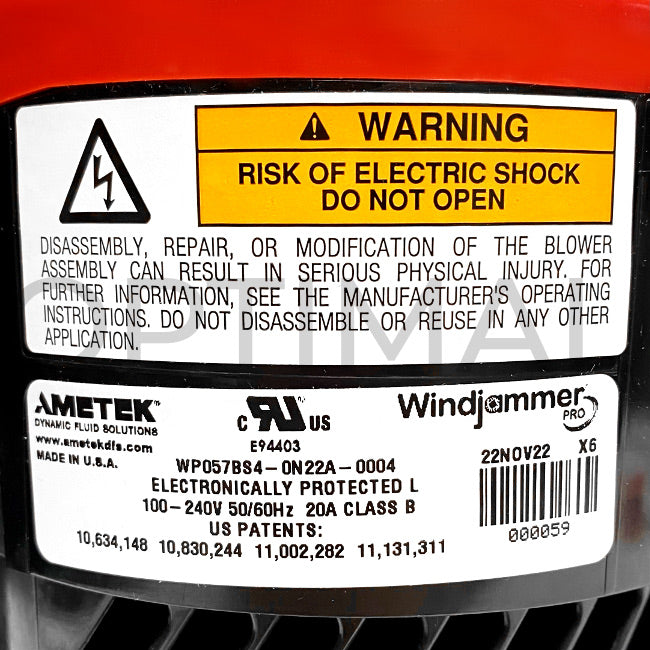

Part # WP057BS4-0N22A-0004
Model Windjammer PRO (5.7"/145mm)
Output Tangential Bypass
Voltage Dual Voltage, 120VAC / 240VAC
Speed Control Electrical, 0-10VDC
Option Card No
Stages 4
Inlet Style Inlet Tube
Flow Classification Standard Flow
Discharge Size 1.25" Diameter
Performance Class 1300 Watt
Mounting .250 DIA THRU HOLE
Approx. Max Pressure in.H2O 185
Approx. Max Pressure Kpa 46.035
Approx. Max Pressure mbar 460.354
Approx. Max Flow SCFM 80
Approx. Max Flow litres/sec 37.756
Approx. Max Flow m3/hour 135.921



Purchase the wiring harnesses required for operating this blower:

If you need additional resources (e.g., cad drawings), please contact us.
