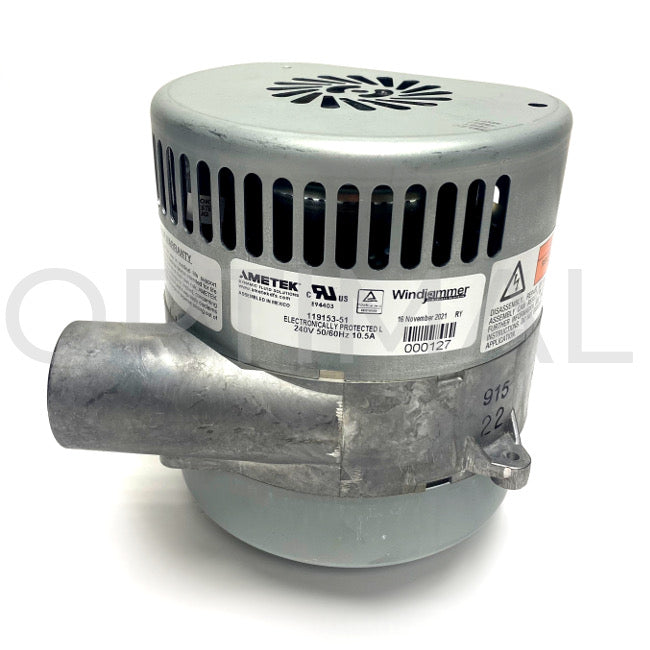

Product may differ slightly from picture.
119153-51 Ametek Windjammer Brushless Blower 5.7" 240VAC 140CFM 111 in.H2O Bypass Elec CL
12 in Stock, Ready to Ship.
PRODUCT DETAILS
| Model | Windjammer (5.7"/145mm) |
| Output | Bypass |
| Voltage | 240 VAC |
| Speed Control | 0 - 10 VDC |
| Speed Regulation | Closed Loop |
| Option Card | No |
| Stages | 2 |
| Flow Classification | High Flow |
| Discharge Size | 1.75" Dia. |
| Performance Class | 1200 Watt |
| Electrical Connections | 5-Cavity Post Header for Two (2) Power and Two (2) 0 to 10 VDC Command Signal Inputs |
| Skid Qty | please contact us |
| Max Pressure in.H2O | 111 |
| Max Pressure Kpa | 27.62 |
| Max Pressure mbar | 276.21 |
| Max Flow SCFM | 140 |
| Max Flow litres/sec | 66.04 |
| Max Flow m3/hour | 237.86 |
General Information:
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).
Industry Information:
Ametek DFS Windjammer brushless DC blowers are found in a variety of equipment within the printing industry. For example, these blowers use both air flow and vacuum functions for handling (holding or separating) paper. An Ametek Windjammer blower can also be used for cooling, ink drying, toner control, and laser imaging, among many other applications. Many of these blowers we sell are used in popular paper handling machines (printing presses, folders, collators) manufactured by OEMs such as Heidelberg, Horizon, and HP.
Specific Model Information:
The Ametek Windjammer brushless DC blower model/part # 119153-51 is commonly used in printing applications; for example: collators, book binders, folders, and copiers. We have also determined that this blower successfully replaces the Minebea Co NMB part # 60DCF-471 for the Horizon VAC-100 Collator. Please ask us for details!

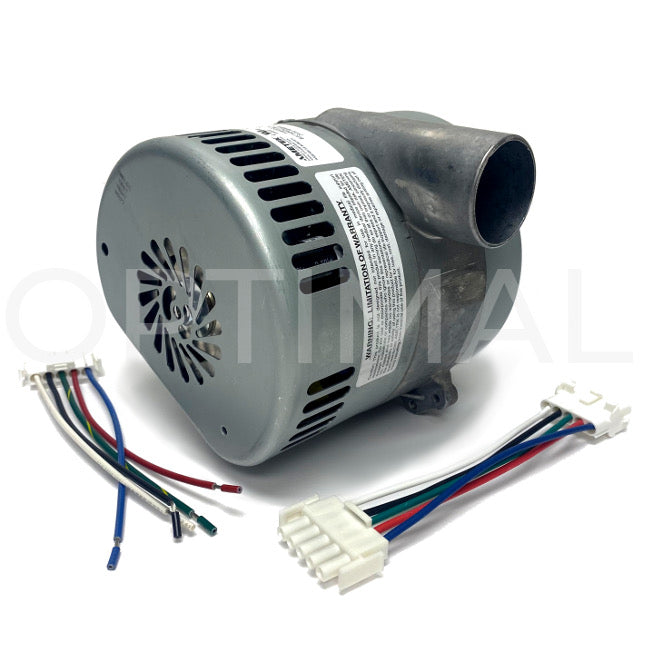

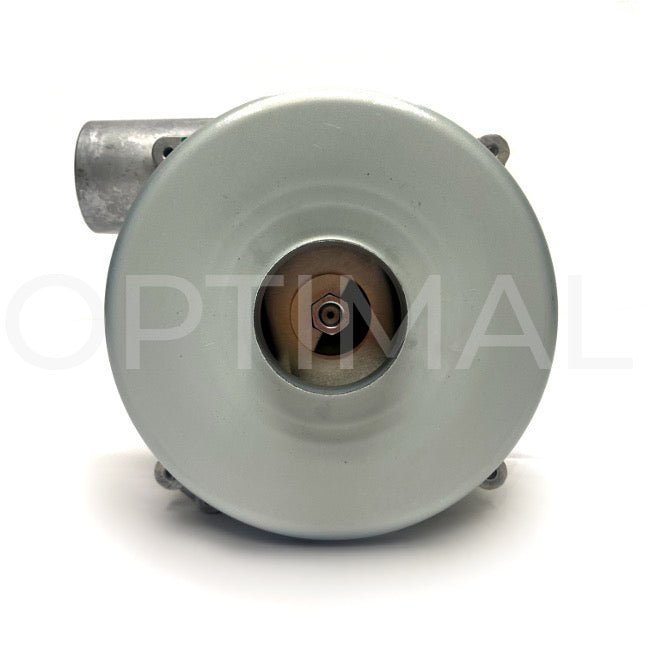

This part is RoHS and REACH Compliant. The blower is manufactured with a 1.75" diameter inlet tube on the working fan shell (see our photos), and is packaged and shipped with the necessary Ametek mating connectors (part numbers 5-39021 and 39680), which can also be purchased separately. Part number 119153-51 replaces the Ametek Windjammer model 119153-01.
See the Ametek 119153-51 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
