119153-54 Ametek Windjammer Brushless Blower 5.7" 240VAC 140CFM 111 in.H2O Bypass Elec CL
2 in Stock, Ready to Ship.
PRODUCT DETAILS
| Model | Windjammer (5.7"/145mm) |
| Output | Bypass |
| Voltage | 240 VAC |
| Speed Control | 0 - 10 VDC |
| Speed Regulation | Closed Loop |
| Option Card | Yes - Tach Out |
| Stages | 2 |
| Flow Classification | High Flow |
| Discharge Size | 1.75" Dia. |
| Performance Class | 1200 Watt |
| Electrical Connections | 5-Cavity Post Header for Two (2) Power, One (1) Ground and Two (2) 0 to 10 VDC Command Signal Inputs and 5-Cavity Post Header for Two (2) Tach Output Signals, Two (2) Speed command Signals and One (1) Positive Supply |
| Skid Qty | 108 |
| Max Pressure in.H2O | 111 |
| Max Pressure Kpa | 27.62 |
| Max Pressure mbar | 276.21 |
| Max Flow SCFM | 140 |
| Max Flow litres/sec | 66.04 |
| Max Flow m3/hour | 237.86 |
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).
Ametek DFS Windjammer brushless DC blowers are found in a variety of equipment within the printing industry. For example, these blowers use both air flow and vacuum functions for handling (holding or separating) paper. An Ametek Windjammer blower can also be used for cooling, ink drying, toner control, and laser imaging, among many other applications. Many of these blowers we sell are used in popular paper handling machines (printing presses, folders, collators) manufactured by OEMs such as Heidelberg, Horizon, and HP.

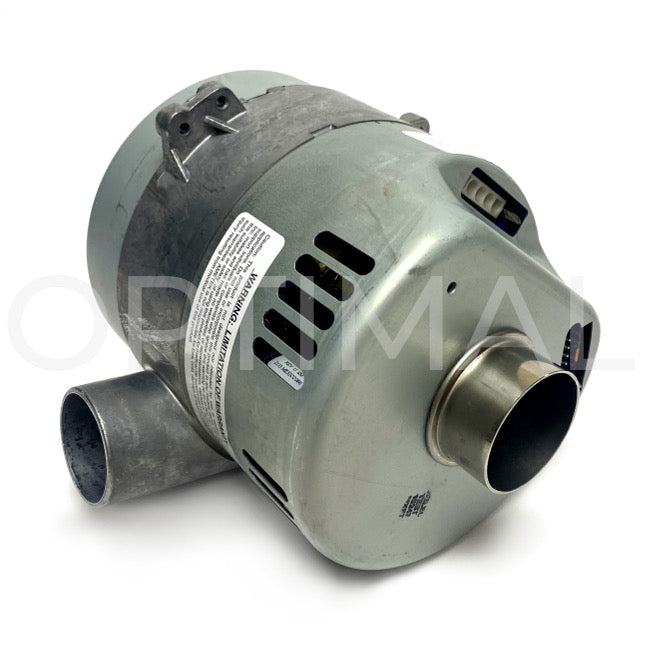

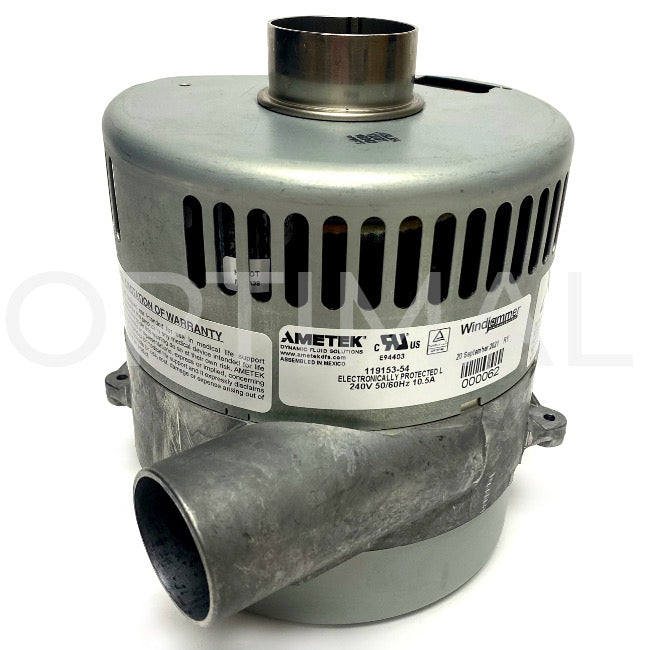

The Ametek Windjammer brushless DC blower model/part # 119153-54 is manufactured with a 1.75" diameter inlet hole (no tube) on the working fan shell, and with a 1.75” diameter inlet tube on the motor cover; additionally, the controller and option card for this blower are specially calibrated. This part is RoHS Compliant.
See the Ametek 119153-54 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
