117635-02 Ametek Windjammer Brushless Blower 5.7" 240VAC 90CFM 61 in.H2O Bypass Mech CL
11 Ready to Ship Today.
|Speed Regulation||Closed Loop|
|Flow Classification||High Flow|
|Discharge Size||1.75" Dia.|
|Performance Class||400 Watt|
|Electrical Connections||5-Cavity Post Header for Two Power Leads|
|Skid Qty||please contact us|
|Max Pressure in.H2O||61|
|Max Pressure Kpa||15.18|
|Max Pressure mbar||151.79|
|Max Flow SCFM||90|
|Max Flow litres/sec||42.45|
|Max Flow m3/hour||152.91|
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).
Ametek DFS Windjammer brushless DC blowers are found in a variety of operating equipment within the dental industry. Many of the Ametek Windjammer blowers we sell are used in vacuum pump systems or suction units within dental offices.
Specific Model Information:

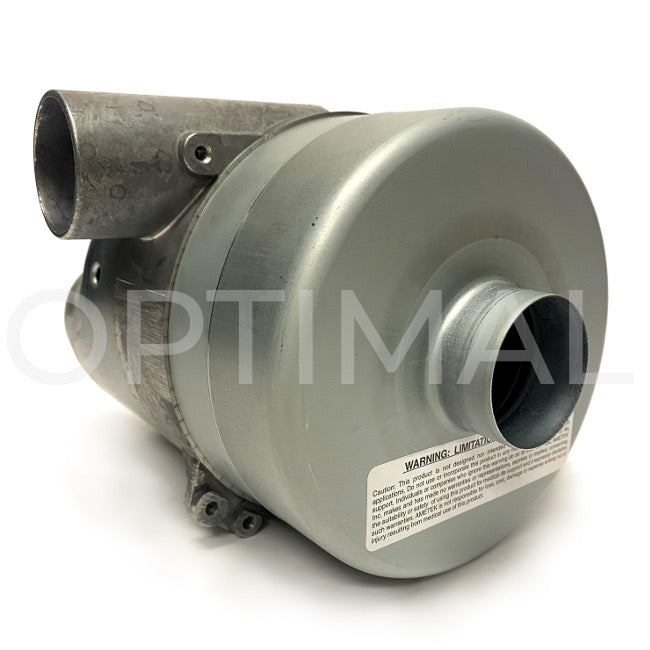

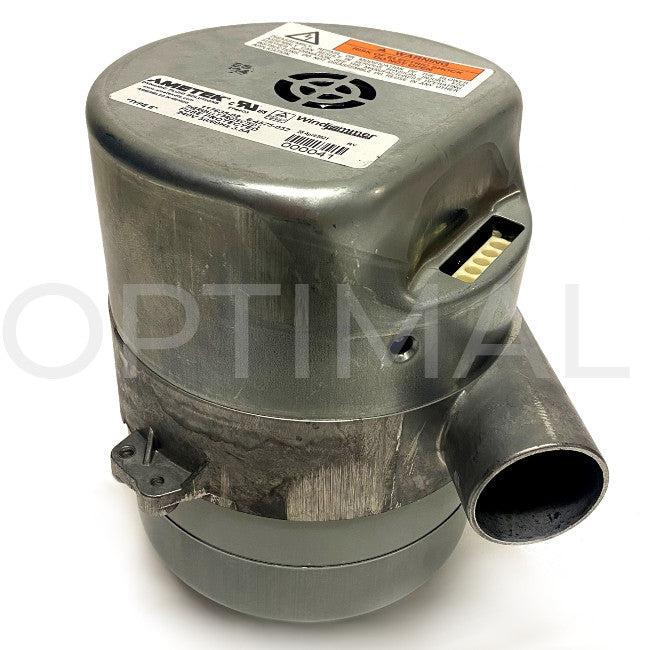

The Ametek Windjammer brushless DC blower model/part # 117635-02 is used in the DentalEZ (Den-tal-EZ, Inc. or CustomAir) dual wet vacuum systems. This blower is manufactured with a 1.75” diameter inlet tube on the working fan, and comes with special sealed bearings for its frequent use in dental applications. This part is Non-RoHS compliant.
See the Ametek 117635-02 catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
