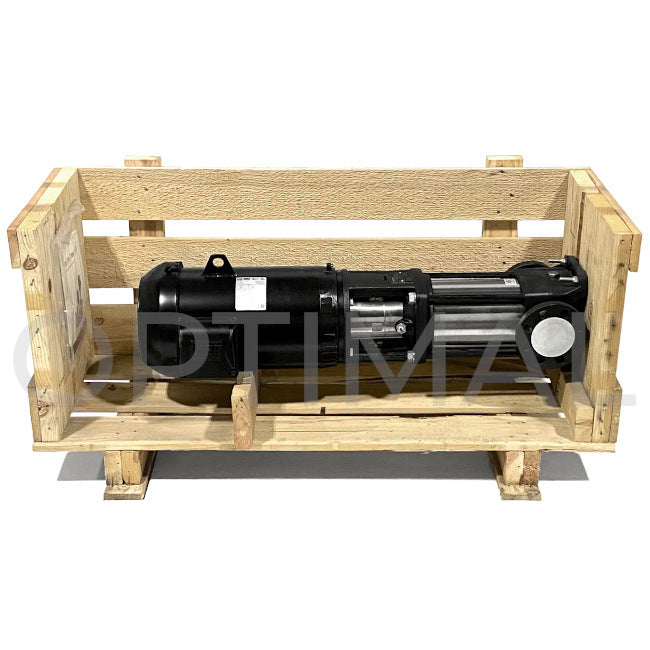

Product may differ slightly from picture.
99917481 Grundfos Vertical Multistage Centrifugal Pump CR15-5 A-GJ-A-E-HQQE 3 Ph 230/460 60 HZ 10 HP 96523616
1 in Stock, Ready to Ship.
|Current Part Number||99917481|
|Previous Part Number||96523616|
|Model Number||CR15-5 A-GJ-A-E-HQQE|

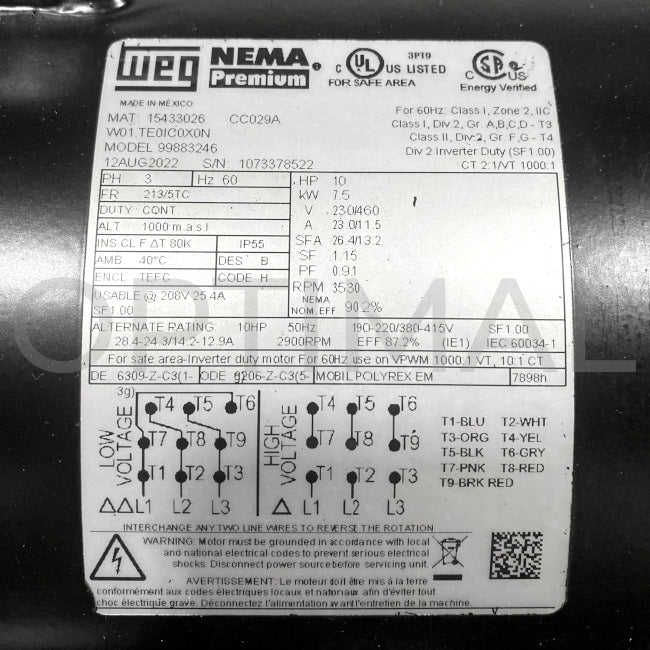

|Motor Manufacturer||WEG (Previously Baldor)|
|Product Type||Vertical Multistage Centrifugal Pump|
|Pump Speed||3470 RPM|
|Rated Flow/Capacities||90.3 US GPM|
|Rated Head||254.6 ft|
|Maximum Head||331.4 ft|
|Number of Stages||5|
|Liquid Temperature Range||-4 .. 248 °F|
|Size Of Inlet Connection||DN 50|
|Size Of Outlet Connection||DN 50|
|Net Weight||273 lbs|
Grundfos CR vertical multistage centrifugal pumps are engineered for quality, longevity, and exceptional performance. CR pumps are built with a sturdy cast iron base, a stainless-steel impeller, and include corrosion-resistant modules, robust bearings, and durable cartridge seals. Grundfos pumps are known for their unmatched versatility, as they satisfy a broad range of requirements and integrate into a wide variety of applications. Application areas include water supply, pressure boosting, and other industrial tasks; more specifically, Grundfos CR pumps handle water systems, boiler feeds, water treatment, and much more. Regardless of your installation's unique challenges, such as limited space, earthquake vulnerability, or high altitudes, the Grundfos CR pump range is up to the task. View Optimal Distribution’s current Grundfos CR vertical multistage centrifugal pumps available here (click).
Grundfos CR pump model CR15-5 A-GJ-A-E-HQQE is available to order directly on our website. You can also contact us (click) if you have questions or would like to place an order over the phone. Please reference part number 99917481 (or old part number 96523616), and an Optimal rep will help. Thank you!
