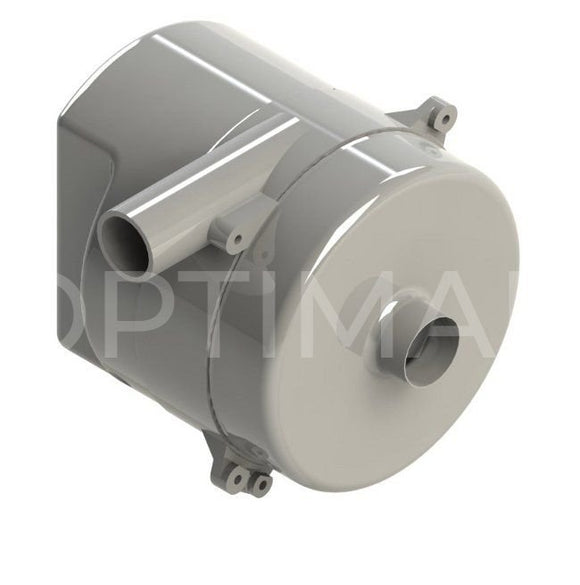

151185-50 Ametek Windjammer Brushless Blower 5.7" 100-240VAC 76 CFM 136 in.H2O Mech CL

Product may differ slightly from picture.

151185-50 Ametek Windjammer Brushless Blower 5.7" 100-240VAC 76 CFM 136 in.H2O Mech CL



Free ground shipping is available for most online orders of $100 or more in the continental U.S.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders. Same day delivery is available for certain orders.

Out of stock items typically ship within 4-6 weeks. Some items currently have delayed lead-times due to global supply shortages.

Please contact us for quantity-based discounts.


PRODUCT DETAILS

Model Windjammer  (5.7"/144.7mm)
Output Bypass
Voltage 100 - 240 VAC
Speed Control Mechanical
Speed Regulation Closed Loop
Option Card No
Stages 3
Flow Classification Standard Flow
Discharge Size 1.25" Dia.
Performance Class 1200 Watt
Electrical Connections Three (3) flying Leads Encapsulated in Shrink Tubing with Two (20 AC Mains and One (1) Ground/Earth
Skid Qty 108
Max Pressure in.H2O 136.04
Max Pressure Kpa 33.85
Max Pressure mbar 338.52
Max Flow SCFM 76.43
Max Flow litres/sec 36.05
Max Flow m3/hour 129.85



This product is proprietary and not available for sale.

Please contact us for a potential replacement
