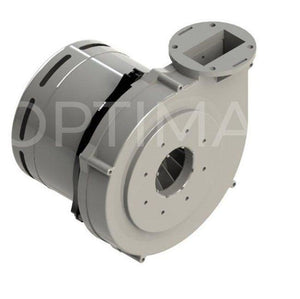

150930-01 Ametek Nautilair Brushless Blower 7.6" 120VAC 164 CFM 28 in.H2O PWM CL

Product may differ slightly from picture.

150930-01 Ametek Nautilair Brushless Blower 7.6" 120VAC 164 CFM 28 in.H2O PWM CL

This product has been discontinued. Please contact us for the replacement.



Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders. Additional fees may apply for LTL residential shipments.

Out of stock items typically ship within 4-6 weeks.

Please contact us for quantity-based discounts.


PRODUCT DETAILS

Model Nautilair (7.6"/193mm)
Output Bypass
Voltage 120 VAC
Speed Control PWM
Speed Regulation Closed Loop
Option Card Yes
Stages 1
Flow Classification High Output - ebm Compatible
Discharge Size 2.80" Bolt Circle
Performance Class High Output
Electrical Connections 3-Cavity Post Header for Two Power Leads plus 5-Cavity Post Header for PWM Speed Command Signal and Internally Powered Tach Output
Skid Qty 60
Max Pressure in.H2O 28.76
Max Pressure Kpa 7.16
Max Pressure mbar 71.57
Max Flow SCFM 164.354
Max Flow litres/sec 77.52
Max Flow m3/hour 279.24



This product is proprietary and not available for sale.

Please contact us for a potential replacement
