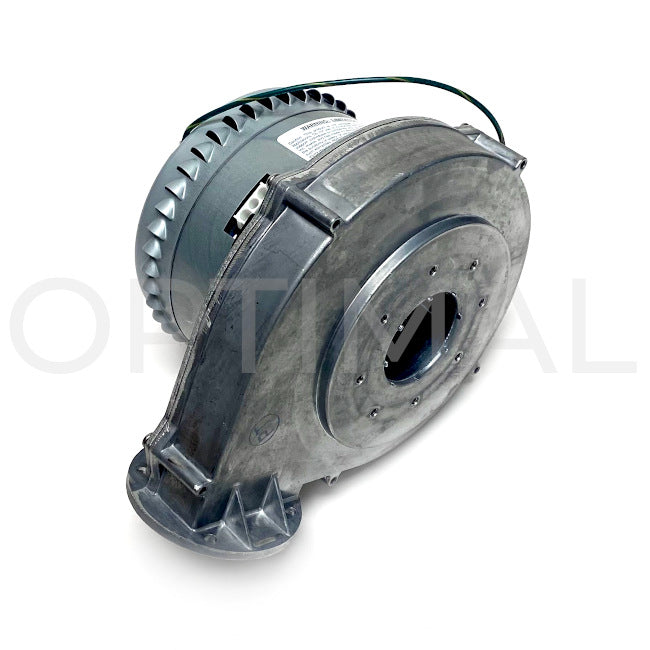

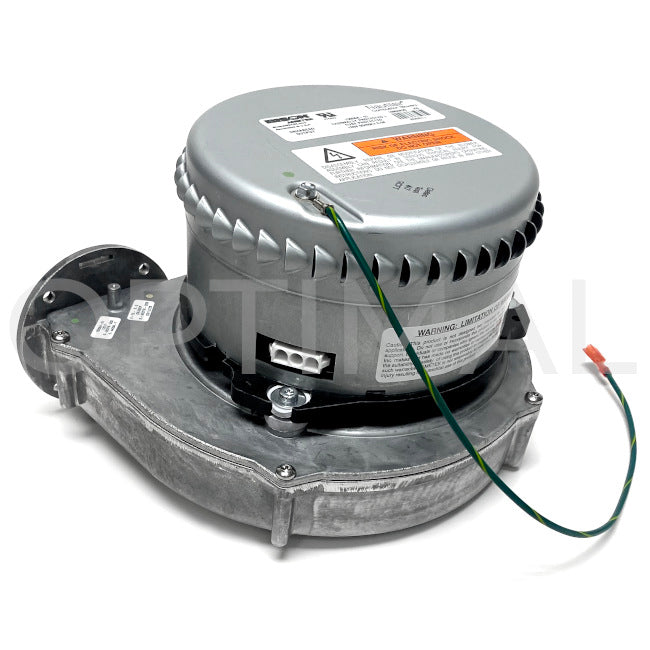

150564-01 Ametek Nautilair Brushless Blower 7.6" 120 VAC

Name: 150564-01 Ametek Nautilair Brushless Blower 7.6" 120 VAC
Brand: Ametek
SKU: 150564-01
Price: 1595.42 USD

Ametek

Available for Order.

In Stock Again
Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders.

Out of stock items typically ship within 4-6 weeks. Some items currently have delayed lead-times due to global supply shortages.

Please contact us for quantity-based discounts.

PRODUCT DETAILS

Nautilair® variable speed brushless DC blowers offer high efficiency, low noise and long-life for combustion applications. The 7.6 Nautilair® is compact and can reach pressures up to 40 inches of H2O and flow rates up to 175 CFM. Versions include standard and high output. Customization is available.

Part Number	150564-01
Frame Size	7.6
Volt	120
AC/DC	AC
Fan Stages	1
Output	Tangential
Replacement Brush Kit	Brushless
Motor Type	Nautilair - BLDC
Speed Control	0 to 10 VDC
Flow Class	Standard Output - Enhanced
Power Level	Standard Output - Enhanced
Comments	same as 150564-00 except added silicone coated board, 4.4 Amps & silicone coated board, None
Alt Parts #	N/A

See the Ametek 150564-01 Nautilair catalog page with technical specifications and diagrams here.

If you need additional resources (e.g., cad drawings), please contact us.

See Ametek DFS’s full catalog of Nautilair brushless blowers available here (click).
