150371-51 Ametek Windjammer Brushless Blower 5.7" 240VAC 123 CFM 131 in.H2O Elec CL

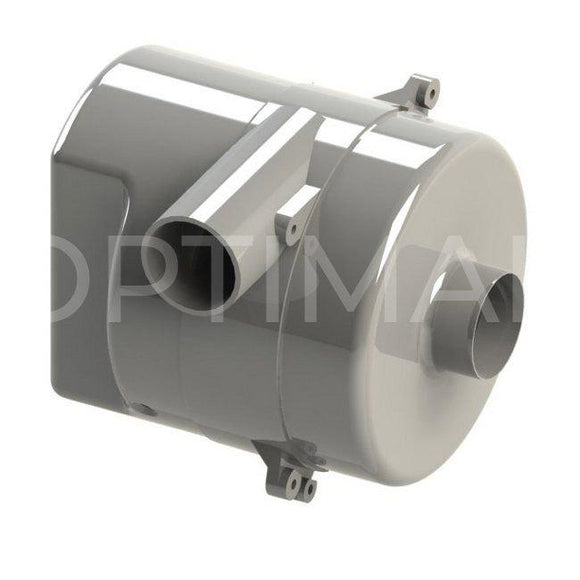

Product may differ slightly from picture.

150371-51 Ametek Windjammer Brushless Blower 5.7" 240VAC 123 CFM 131 in.H2O Elec CL



PRODUCT DETAILS

Model Windjammer  (5.7"/144.7mm)
Output Bypass
Voltage 240 VAC
Speed Control 0 - 10 VDC
Speed Regulation Closed Loop
Option Card Yes
Stages 2
Flow Classification High Flow
Discharge Size 1.75" Dia.
Performance Class 1200 Watt
Electrical Connections 5-Cavity Post Header with Two (2) AC Power, One (1) Ground and Two (2) Speed Command Inputs Plus a 5-Cavity Option Card Post Header for Two (2) Normally Open Blower Status Relay Contacts Signal and Common Connections
Skid Qty 108
Max Pressure in.H2O 131.64
Max Pressure Kpa 32.75
Max Pressure mbar 327.57
Max Flow SCFM 123.7
Max Flow litres/sec 58.35
Max Flow m3/hour 210.17



This product is proprietary and not available for sale.

Please contact us for a potential replacement
