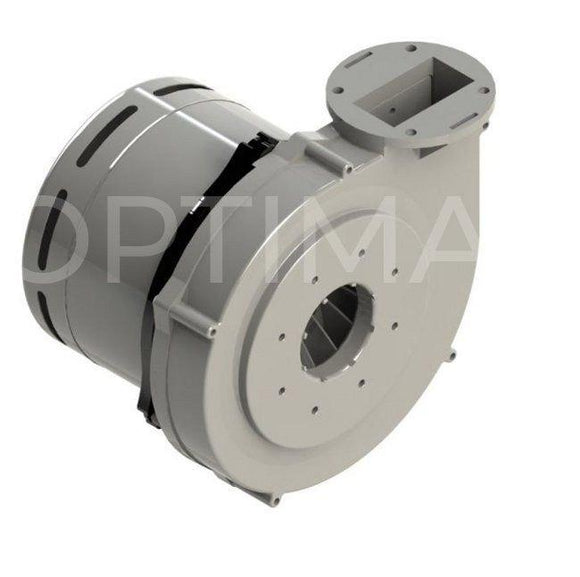

150134-61 Ametek Nautilair Brushless Blower 7.6" 120VAC 139 CFM 40 in.H2O OL

Product may differ slightly from picture.

150134-61 Ametek Nautilair Brushless Blower 7.6" 120VAC 139 CFM 40 in.H2O OL



PRODUCT DETAILS

Model Nautilair (7.6"/193mm)
Output Bypass
Voltage 120 VAC
Speed Control Mechanical via Remote Pot Option Card
Speed Regulation Open Loop
Option Card Yes
Stages 1
Flow Classification High Flow
Discharge Size 2.8" Bolt Circle, D modified
Performance Class High Output
Electrical Connections 5-Cavity Post Header for Power and Command Speed Inputs
Skid Qty 60
Max Pressure in.H2O 40.04
Max Pressure Kpa 9.96
Max Pressure mbar 99.64
Max Flow SCFM 139.85
Max Flow litres/sec 65.97
Max Flow m3/hour 237.61



This product is proprietary and not available for sale.

Please contact us for a potential replacement
