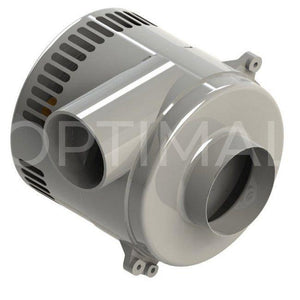

119162-50 Ametek Windjammer Brushless Blower 5.7" 240VAC 268 CFM 45 in.H2O Elec CL

Product may differ slightly from picture.

119162-50 Ametek Windjammer Brushless Blower 5.7" 240VAC 268 CFM 45 in.H2O Elec CL



PRODUCT DETAILS

Model Windjammer  (5.7"/144.7mm)
Output Bypass
Voltage 240 VAC
Speed Control 0 - 10 VDC
Speed Regulation Closed Loop
Option Card Yes - Internally PoweredTach Out
Stages 1
Flow Classification Ultra High flow
Discharge Size 2.50" Dia.
Performance Class 1200 Watt
Electrical Connections 5-Cavity Post Header for Two (2) Power, One (1) Ground and Two (2) 0 to 10 VDC Command Signal Inputs Plus 5-Cavity Option Card Header for Two (2) Tach Output Signal Wires
Skid Qty 108
Max Pressure in.H2O 45.6
Max Pressure Kpa 11.35
Max Pressure mbar 113.47
Max Flow SCFM 268
Max Flow litres/sec 126.41
Max Flow m3/hour 455.33



This product is proprietary and not available for sale.

Please contact us for a potential replacement
