119102-01 Ametek Windjammer Brushless Blower 5.7" 120VAC 140.53CFM 38.83 in.H2O Bypass Mechanical closed loop_optimal distribution

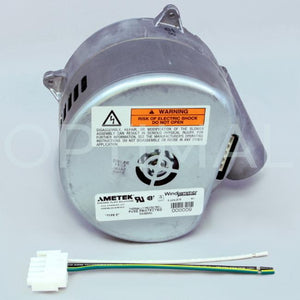

Product may differ slightly from picture.

119102-01 Ametek Windjammer Brushless Blower 5.7" 120VAC 140CFM 38 in.H2O Bypass Mech CL

Ametek


0 Ready to Ship Today.



In Stock Again
Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock brushless items ship same day, 4:30 pm EST cut-off. In-stock Rotron Regenerative blowers can ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for in-stock brushless and Rotron items for next-day and possibly SAME-DAY delivery, for domestic orders.

Out of stock items typically ship within 4-6 weeks. Some items currently have delayed lead-times due to global supply shortages.

Please contact us for quantity-based discounts.

PRODUCT DETAILS

Model  Windjammer (5.7"/145mm)
Output  Bypass
Voltage 120 VAC
Speed Control Mechanical
Speed Regulation Closed Loop
Option Card No
Stages 1
Flow Classification High Flow
Discharge Size 1.75" Dia.
Performance Class 800 Watt
Electrical Connections 5-Cavity Post Header for Two (2) Power Inputs
Skid Qty please contact us
Max Pressure in.H2O 38.83
Max Pressure Kpa 9.66
Max Pressure mbar 96.62
Max Flow SCFM 140.529
Max Flow litres/sec 66.29
Max Flow m3/hour 238.76



The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

The Ametek Windjammer brushless DC blower model/part # 119102-01 is the distribution version of # 119102-00. All performance features, fit, and functionality are identical. The only difference between the -00 and the -01 model is that the 119102-01 is packaged with the two mating connectors / wiring harness part numbers 5-39016 and 39795 (119102-00 is packaged with only 5-39016). The 119102-01 Windjammer blower is manufactured with a 1.75" diameter inlet tube on the working fan shell. This part is RoHS and REACH Compliant.

See the Ametek 119102-01 Windjammer catalog page with technical specifications and diagrams here.

If you need additional resources (e.g., cad drawings), please contact us.
