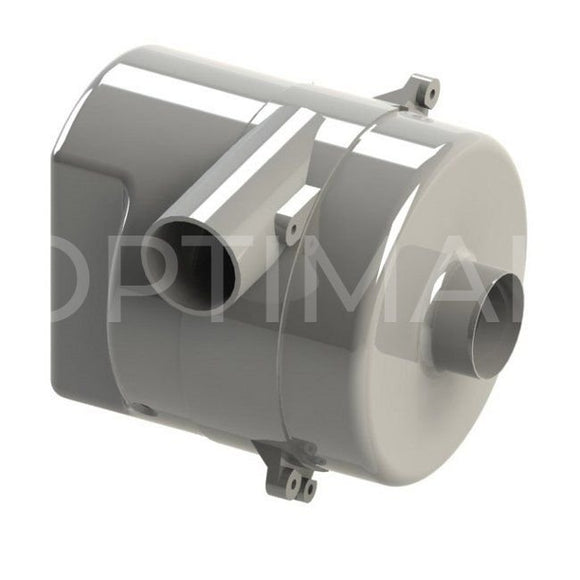

117650-01 Ametek Windjammer Brushless Blower 5.7" 240VAC 95 CFM 45 in.H2O Elec CL

Product may differ slightly from picture.

117650-01 Ametek Windjammer Brushless Blower 5.7" 240VAC 95 CFM 45 in.H2O Elec CL

Not in Stock, but Available for Order.



Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders. Additional fees may apply for LTL residential shipments.

Out of stock items typically ship within 4-6 weeks.

Please contact us for quantity-based discounts.


PRODUCT DETAILS

Model Windjammer  (5.7"/144.7mm)
Output Thru-Flow
Voltage 240 VAC
Speed Control 0 - 10 VDC
Speed Regulation Closed Loop
Option Card No
Stages 2
Flow Classification Dual Function
Discharge Size 1.75" Dia.
Performance Class 400 Watt
Electrical Connections 5-Cavity Post Header with Two Power Leads and Two for 0 to 10 VDC Speed Command Signal
Max Pressure in.H2O 45
Max Pressure Kpa 11.2
Max Pressure mbar 111.98
Max Flow SCFM 95
Max Flow litres/sec 44.81
Max Flow m3/hour 161.41
