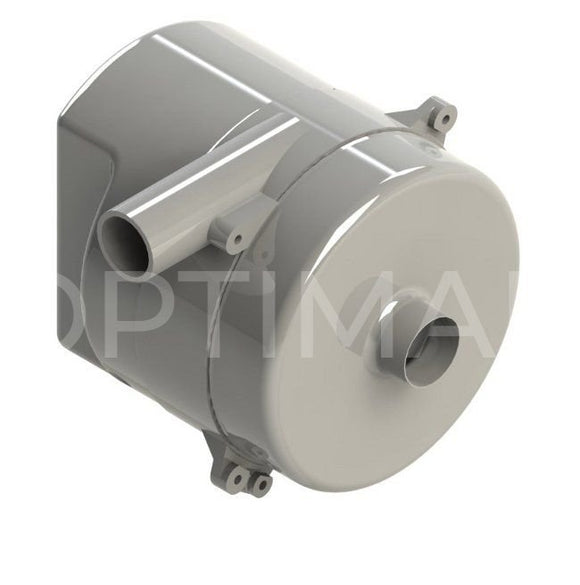

117416-55 Ametek Windjammer Brushless Blower 5.7" 240VAC 87 CFM 169 in.H2O Mech CL

Product may differ slightly from picture.

117416-55 Ametek Windjammer Brushless Blower 5.7" 240VAC 87 CFM 169 in.H2O Mech CL



PRODUCT DETAILS

Model Windjammer  (5.7"/144.7mm)
Output Bypass
Voltage 240 VAC
Speed Control Mechanical
Speed Regulation Closed Loop
Option Card No
Stages 3
Flow Classification Standard Flow
Discharge Size 1.25" Dia.
Performance Class 1200 Watt
Electrical Connections 5-Cavity Connector with Male Pins - Two for AC Power and One for Grong/Earth on 14" Long Leads
Skid Qty 108
Max Pressure in.H2O 169
Max Pressure Kpa 42.05
Max Pressure mbar 420.54
Max Flow SCFM 87
Max Flow litres/sec 41.04
Max Flow m3/hour 147.81



This product is proprietary and not available for sale.

Please contact us for a potential replacement
