Product may differ slightly from picture.

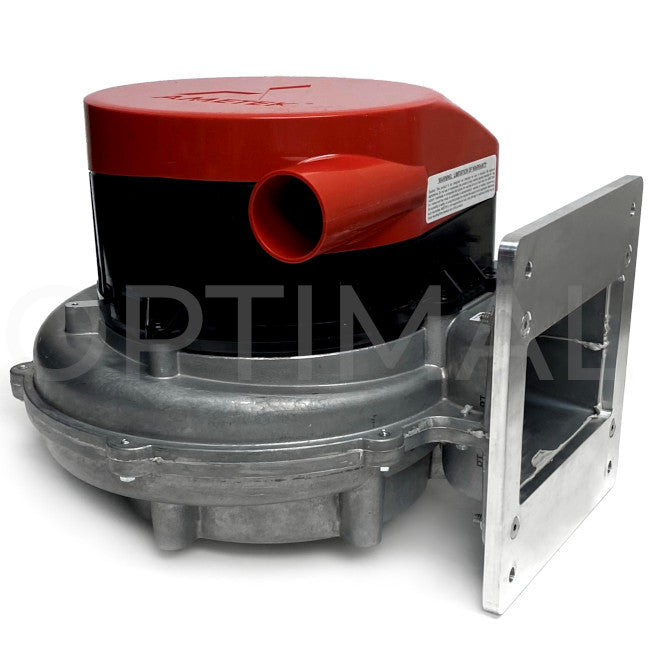

151401-01P Ametek Nautilair Brushless Blower 12.3" 380-575 VAC ELEC, Enhanced
Not in Stock, but Available for Order.
PRODUCT DETAILS
| Model | Nautilair (12.3"/312mm) |
| Output | Bypass |
| Voltage | 380-575 VAC |
| Speed Control | 0-10 VDC |
| Speed Regulation | Open Loop |
| Option Card | No |
| Stages | 1 |
| Flow Classification | High output |
| Discharge Size | Large Square Flange |
| Performance Class | High Energy |
| Electrical Connections | 4-Pin Power;5-Pin Control; 3 Pin Status |
| Skid Qty | 14 |
| Max Pressure in.H2O | 26 |
| Max Pressure Kpa | 6 |
| Max Pressure mbar | 64 |
| Max Flow SCFM | 1245 |
| Max Flow litres/sec | 587 |
| Max Flow m3/hour | 2115 |
The new Ametek Nautilair Enhanced 12.3” High Energy brushless blower has more power, less noise, and greater efficiency. This Nautilair blower is equipped with eight backward curved fins rather than the normal twenty straight fins, along with an impact resistant plastic enclosure. These subtle changes not only increase motor performance without compromising motor cooling, but also provide substantial noise reduction (up to 14dB less sound). The new impact resistant plastic enclosure comes with a new exhaust tube which eliminates any re-circulation of motor cooling air, while providing customers the option for ducting the air out.
For more details about this product, visit our blog post here (click).
