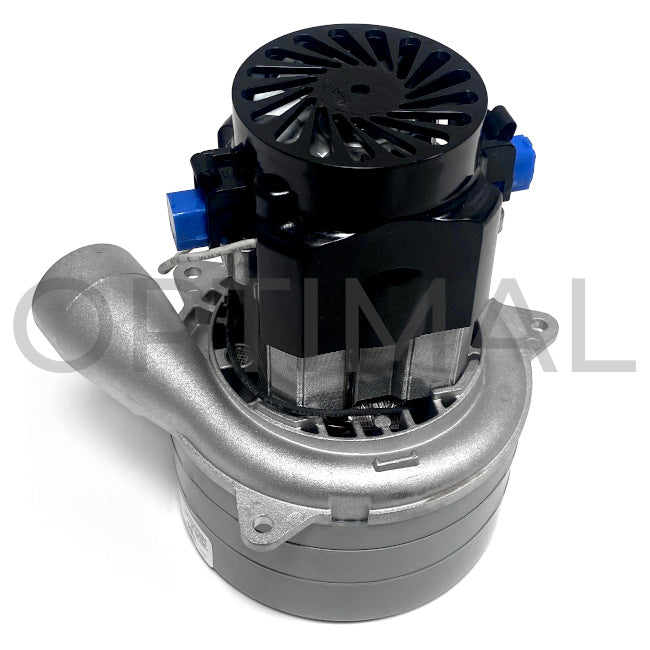

116765-13 Lamb Ametek Bison Electric Vacuum Motor 5.7" 120 VAC 3-Stage
71 in Stock, Ready to Ship.
PRODUCT DETAILS
116765-13 Ametek Bison Lamb Electric Vacuum Motor 5.7" 120 VAC 3-Stage.
| Product Type | Specification |
|---|---|
| Frame Size | 5.7 |
| Volt | 120 |
| AC/DC | AC |
| Fan Stages | 3 |
| Output | Tangential |
| Replacement Brush Kit | 833423-77 |
| Motor Type | Traditional Lamb |
| Speed Control | None |
| Flow Class | Standard Flow |
| Power Level | 1500 Watt |
| Comments | Same as -00, but with bearing air seal, None, None |
| Alt Parts # | N/A |
| Box Dimensions: | 9" x 9" x 9" |
| Shipping Weight: | 6.74 lbs. (8 lbs. with packaging included) |
| Note: |
116765-13 can be used in place of 116765-00; only difference is the additional air seal for water applications. 116765-00 = Wagner part number 0275263. |
Bison Ametek Lamb 116765-13 Product Bulletin
**Typically used in applications requiring separation of working air from motor ventilating air. Designed to handle clean, dry, filtered air only. Also used in Wagner HVLP paint sprayers / pressure prayers.
---
Ametek Lamb® Motors are renowned for their compact design, high-speed capabilities, exceptional performance, and extended lifespan, setting the benchmark for quality and innovation in the vacuum and blower industry. Engineered to be lightweight and energy-efficient, these trusted motors achieve speeds of 30,000 to over 50,000 RPM and operate for 1,500+ hours. The 7.2" Bypass Peripheral Vacuum Motors deliver sealed vacuums of up to 135" H2O and flow rates up to 125 CFM, offering industrial-grade reliability and durability for demanding applications.
If you have a Lamb part number not listed on our website, contact us for a personalized quote. We can also assist in finding a motor customized to suit your existing or new application!
