Product may differ slightly from picture.

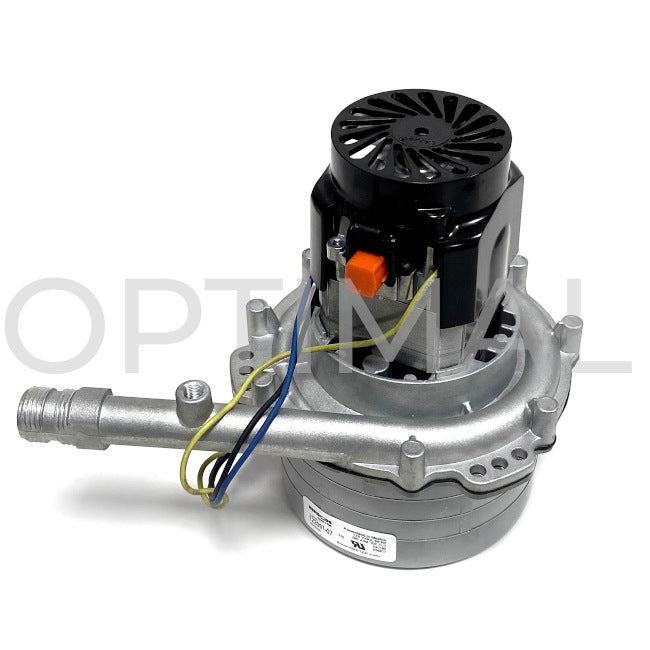

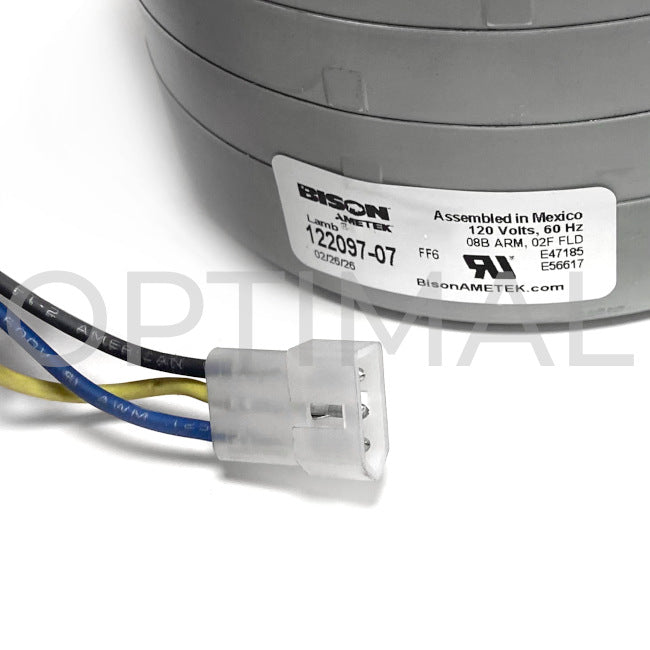

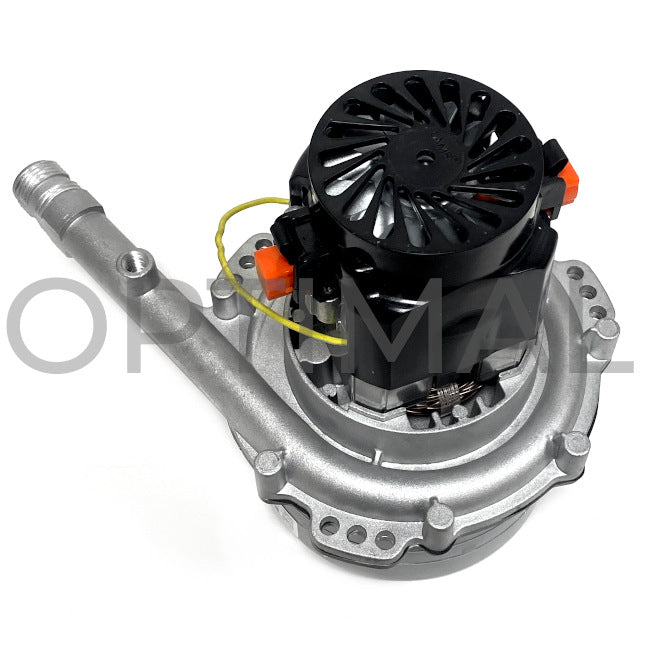

122097-07 Lamb Ametek Bison Vacuum Motor 5.7" 120 VAC 6-Stage, HVLP FUJI 3086
1 in Stock, Ready to Ship.
PRODUCT DETAILS
122097-07 Ametek Bison Lamb Electric Vacuum Motor 5.7" 120 VAC 6-Stage. Ametek part # 122097-07. FUJI part # 3086. Used in High Volume Low Pressure (HVLP) paint / pressure sprayer applications.
| Product Type | Specification |
|---|---|
| Frame Size | 5.7 |
| Volt | 120 |
| AC/DC | AC |
| Fan Stages | 6 |
| Output | Tangential |
| Replacement Brush Kit | 833446-65 |
| Motor Type | HVLP Pressure Sprayer |
| Speed Control | None |
| Flow Class | High Pressure |
| Power Level | 1700 Watt |
| Comments | Same as -00 except threaded ground and connector |
| Alt Parts # | N/A |
| Note: | 122097-00 and 122097-07 are the same motors apart from the connector plug on the -07 model. |
| Box Dimensions: | 12" x 12" x 12" |
| Shipping Weight: | 9.7 lbs. |
There is no specific 122097-07 product bulletin available, however you can use the -00 one since the only difference is the connector: 122097-00 Product Bulletin
---
Ametek Lamb® Motors are renowned for their compact design, high-speed capabilities, exceptional performance, and extended lifespan, setting the benchmark for quality and innovation in the vacuum and blower industry. Engineered to be lightweight and energy-efficient, these trusted motors achieve speeds of 30,000 to over 50,000 RPM and operate for 1,500+ hours. The 7.5" Bypass Peripheral Vacuum Motors deliver sealed vacuums of up to 88" H2O and flow rates up to 126 CFM. Designed with industrial-grade all-diecast construction and serviceable brushes, they offer a legacy of durability and extended lifespan for demanding applications.
If you have a Lamb part number not listed on our website, contact us for a personalized quote. We can also assist in finding a motor customized to suit your existing or new application!
