117637-51 Ametek Windjammer Brushless Blower 5.7" 240VAC 106CFM 24 in.H2O Bypass Mechanical Closed Loop_Optimal Distribution
117637-51 Ametek Windjammer Brushless Blower 5.7" 240VAC 106CFM 24 in.H2O Bypass Mechanical Closed Loop_Optimal Distribution
117637-51 Ametek Windjammer Brushless Blower 5.7" 240VAC 106CFM 24 in.H2O Bypass Mechanical Closed Loop_Optimal Distribution
117637-51 Ametek Windjammer Brushless Blower 5.7" 240VAC 106CFM 24 in.H2O Bypass Mechanical Closed Loop_Optimal Distribution

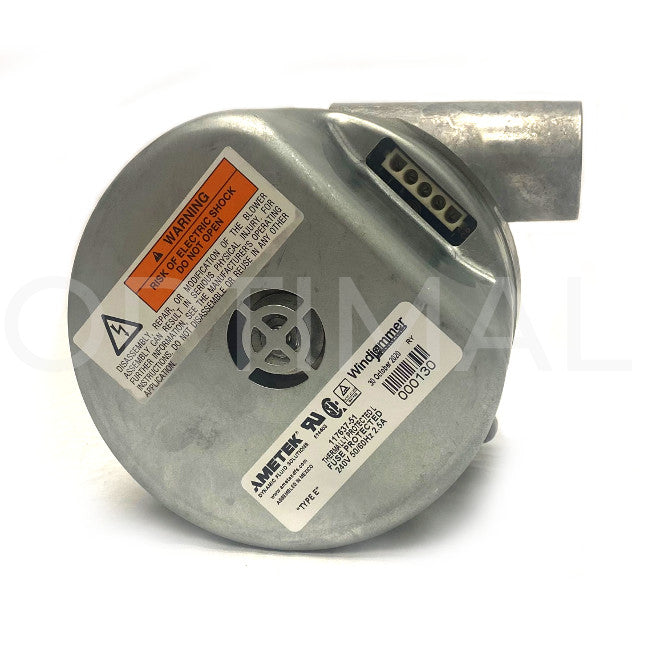

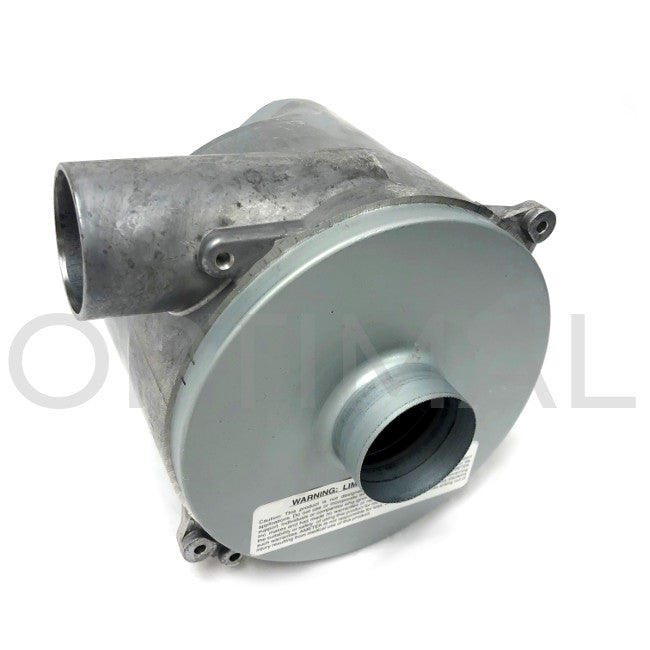

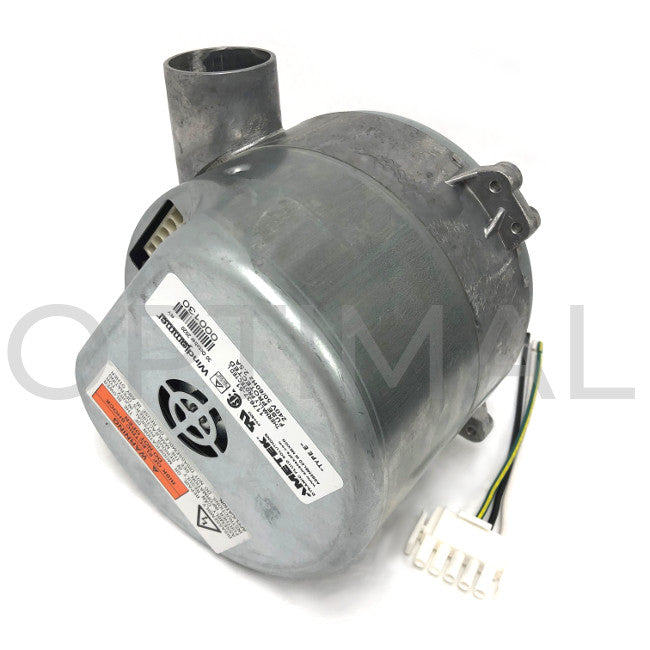

Product may differ slightly from picture.

117637-51R Ametek Windjammer Brushless Blower 5.7" 240VAC 106CFM 24 in.H2O Bypass Mech CL

Ametek

6 in Stock, Ready to Ship.





Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders. Additional fees may apply for LTL residential shipments.

Out of stock items typically ship within 4-6 weeks.

Please contact us for quantity-based discounts.


PRODUCT DETAILS

Model  Windjammer (5.7"/145mm)
Output  Bypass
Voltage 240 VAC
Speed Control Mechanical
Speed Regulation Closed Loop
Option Card No
Stages 1
Flow Classification High Flow
Discharge Size 1.75" Dia.
Performance Class 400 Watt
Electrical Connections 5-Cavity Post Header for Two Power Leads
Skid Qty please contact us
Max Pressure in.H2O 24
Max Pressure Kpa 5.97
Max Pressure mbar 59.72
Max Flow SCFM 106
Max Flow litres/sec 50
Max Flow m3/hour 180.09



The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

The Ametek Windjammer brushless DC blower model/part # 117637-51 has been frequently used in business machines applications (e.g., packaging). The blower is manufactured with a 1.75” diameter inlet tube on the working fan shell and is packaged with the Ametek mating wiring harness part number 39679. 117637-51 is RoHS Compliant and is the exact replacement for Ametek 117637-01.

See the Ametek 117637-51 Windjammer catalog page with technical specifications and diagrams here.

If you need additional resources (e.g., cad drawings), please contact us.
