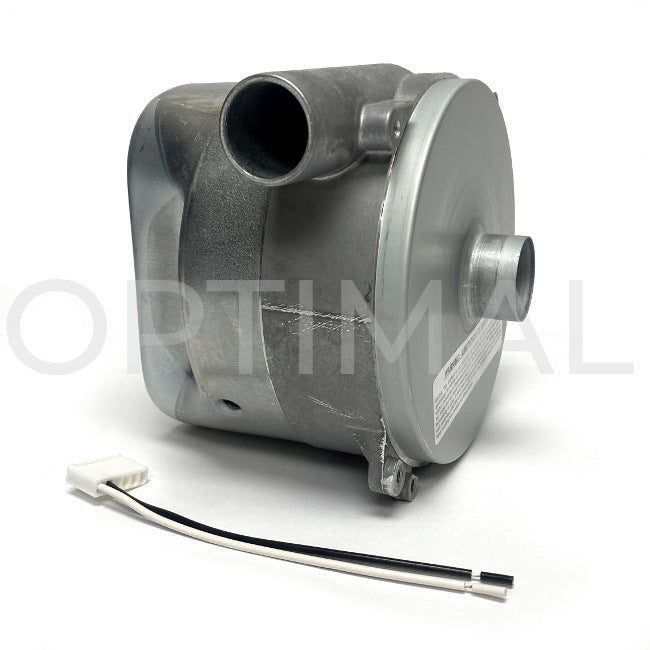

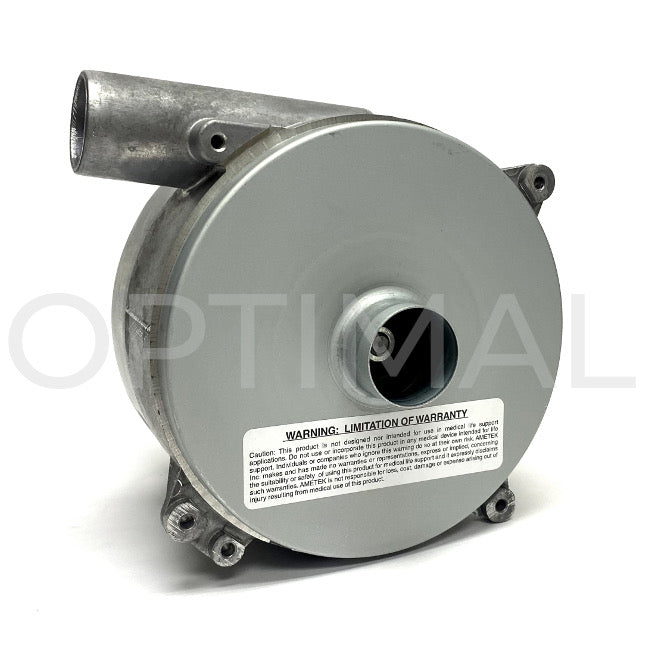

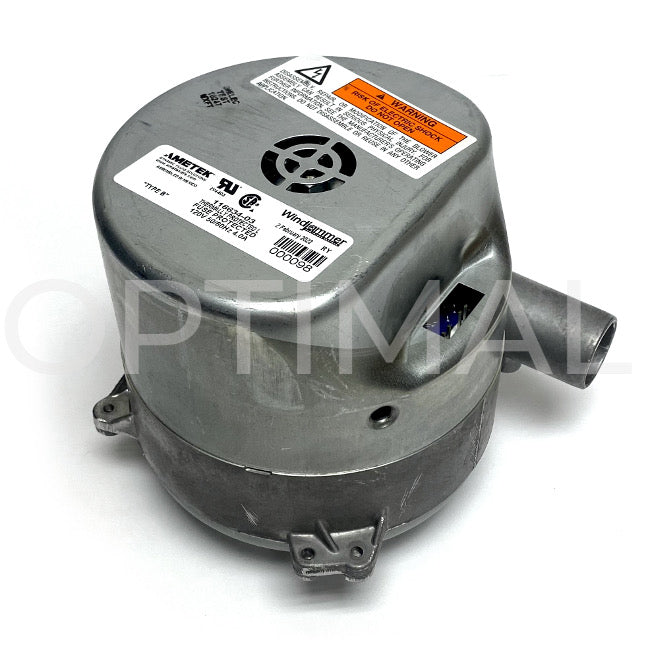

116634-03 Ametek Windjammer Brushless Blower 5.7" 120VAC 67CFM 31 in.H2O Bypass Mech CL
1 in Stock, Ready to Ship.
PRODUCT DETAILS
| Model | Windjammer (5.7"/145mm) |
| Output | Bypass |
| Voltage | 120 VAC |
| Speed Control | Mechanical |
| Speed Regulation | Closed Loop |
| Option Card | No |
| Stages | 1 |
| Flow Classification | Standard Flow |
| Discharge Size | 1.25" Dia. |
| Performance Class | 250 Watt |
| Electrical Connections | 6-Cavity Post Header for Two Power Leads |
| Skid Qty | please contact us |
| Max Pressure | 30.4 IWG |
| Max Flow | 75.9 SCFM |
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).
The Ametek Windjammer brushless DC blower model/part # 116634-03 is the distribution version of Ametek 116634-01, and is packaged and delivered with the Ametek mating wiring harness part number 39649. This part is RoHS Compliant.
See the Ametek 116634-03 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
