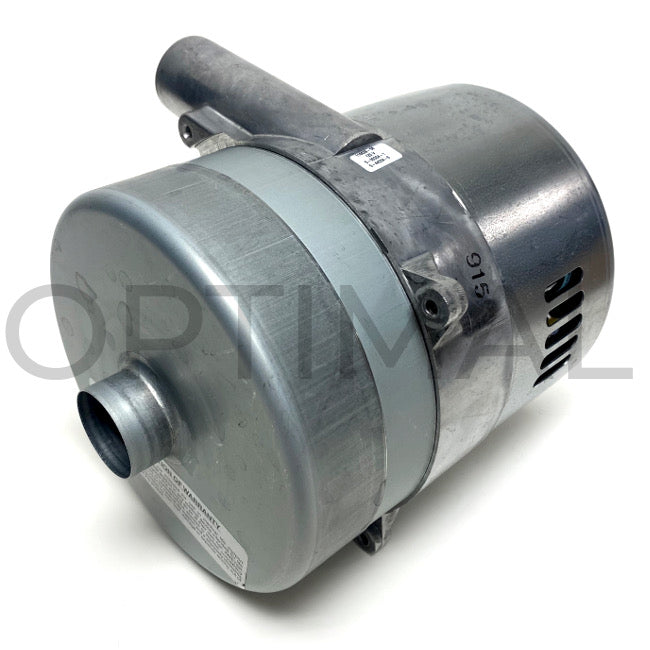

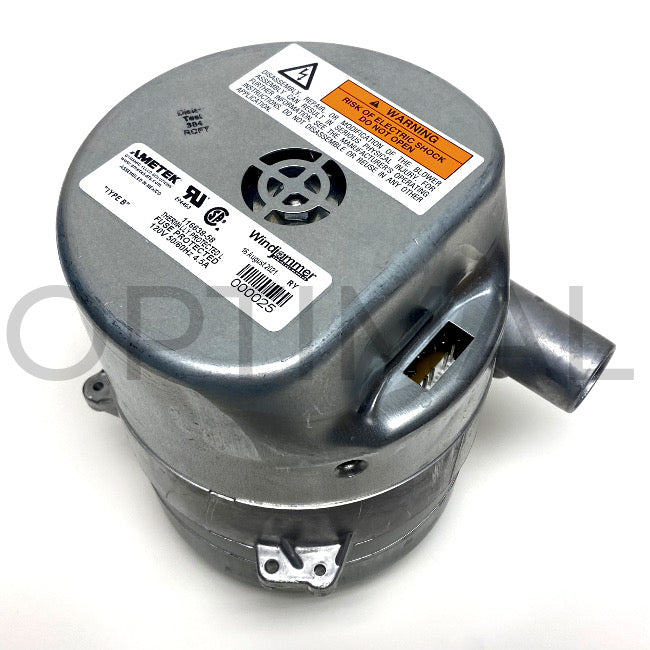

Product may differ slightly from picture.
116638-58 Ametek Windjammer Brushless Blower 5.7" 120VAC 48CFM 64 in.H2O Bypass Elec CL
Not in Stock, but Available for Order.
PRODUCT DETAILS
| Model | Windjammer (5.7"/145mm) |
| Output | Bypass |
| Voltage | 120 VAC |
| Speed Control | 0 - 10 VDC |
| Speed Regulation | Closed Loop |
| Option Card | No |
| Stages | 3 |
| Flow Classification | Standard Flow |
| Discharge Size | 1.25" Dia. |
| Performance Class | 250 Watt |
| Electrical Connections | 6-Cavity Post Header for 4-Wire Harness with Two Power Leads and Two Speed Command Leads |
| Skid Qty | please contact us |
| Max Pressure in.H2O | 64.92 |
| Max Pressure Kpa | 16.15 |
| Max Pressure mbar | 161.55 |
| Max Flow SCFM | 48.9 |
| Max Flow litres/sec | 23.07 |
| Max Flow m3/hour | 83.08 |
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

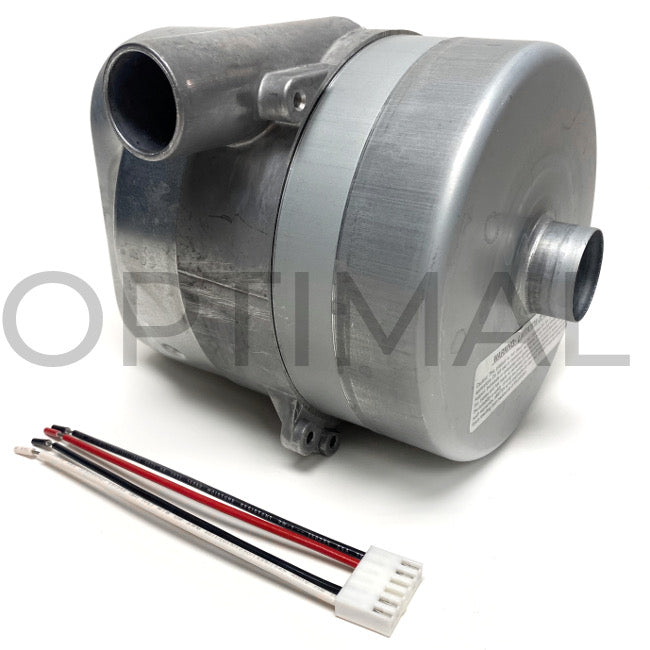

The Ametek Windjammer brushless DC blower model/part # 116638-58 is manufactured with a 1.25” diameter inlet tube on the working fan shell and is packaged and shipped with the Ametek wiring harness part number 39650. This part is RoHS compliant.
See the Ametek 116638-58 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
