117642-52R Ametek Windjammer Brushless Blower 5.7" 240VAC 95CFM 45 in.H2O Bypass Elec CL (117642-52)
4 in Stock, Ready to Ship.
PRODUCT DETAILS
Model | Windjammer (5.7"/145mm) |
Output | Bypass |
Voltage | 240 VAC |
Speed Control | 0 - 10 VDC |
Speed Regulation | Closed Loop |
Option Card | No |
Stages | 2 |
Flow Classification | High Flow |
Discharge Size | 1.75" Dia. |
Performance Class | 400 Watt |
Electrical Connections | 5-Cavity Post Header with Two Power Leads and Two for 0 to 10 VDC Speed Command Signal |
Skid Qty | please contact us |
Max Pressure in.H2O | 45 |
Max Pressure Kpa | 11.2 |
Max Pressure mbar | 111.98 |
Max Flow SCFM | 95 |
Max Flow litres/sec | 44.81 |
Max Flow m3/hour | 161.41 |
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

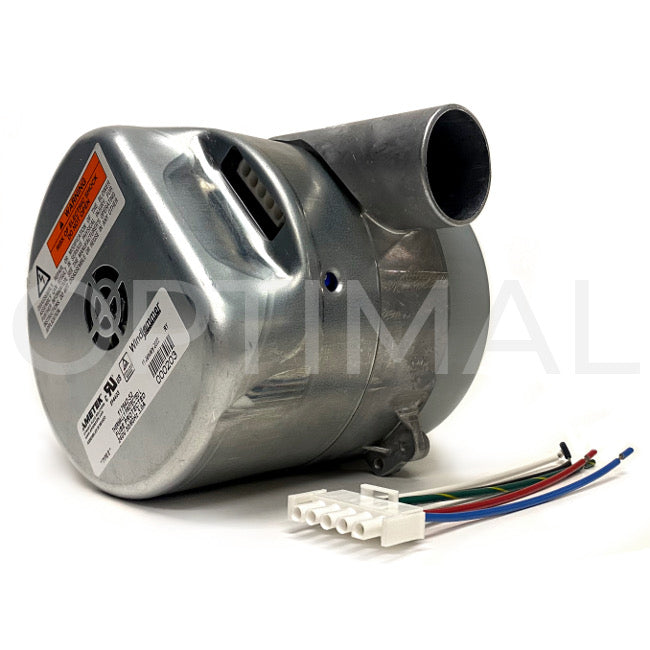

The Ametek Windjammer brushless DC blower model/part # 117642-52 has been frequently used in laboratory equipment (e.g., glove boxes, isolation and containment devices) and printing machines. The blower is manufactured with a 1.75” diameter inlet tube on the working fan shell and is packaged for delivery with the Ametek mating connector part number 39680. The Ametek Windjammer 117642-52 blower is RoHS Compliant and replaces the Ametek 117642-02 model.
See the Ametek 117642-52 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
