116642-03 Ametek Windjammer Brushless Blower 5.7" 120VAC 103.93CFM 51.21 in.H2O Bypass Electrical Closed Loop_Optimal Distribution
116642-03 Ametek Windjammer Brushless Blower 5.7" 120VAC 103.93CFM 51.21 in.H2O Bypass Electrical Closed Loop_Optimal Distribution
116642-03 Ametek Windjammer Brushless Blower 5.7" 120VAC 103.93CFM 51.21 in.H2O Bypass Electrical Closed Loop_Optimal Distribution

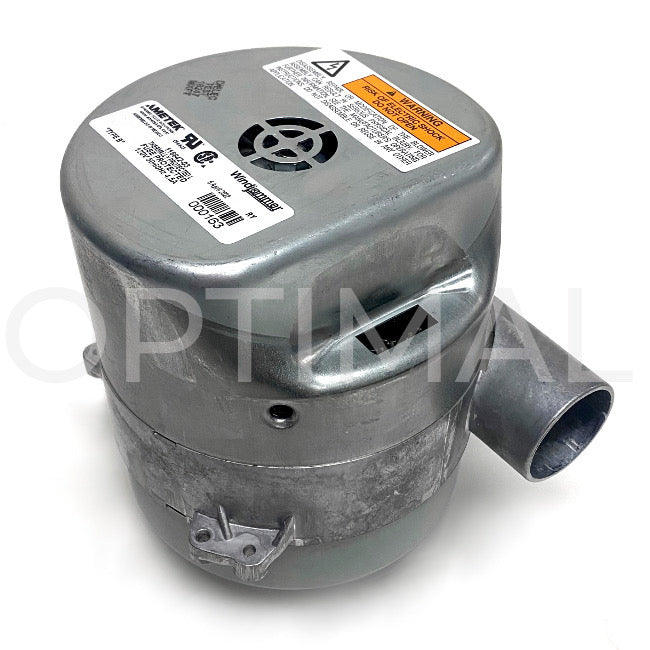

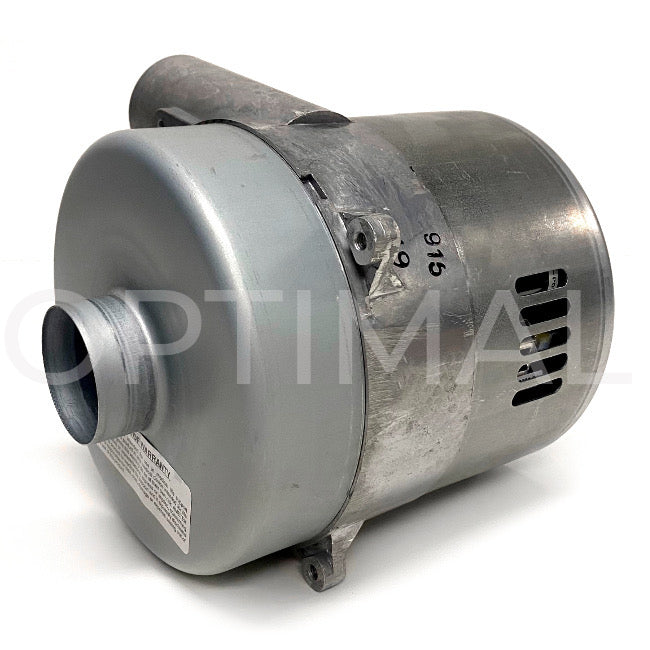

Product may differ slightly from picture.

116642-03 Ametek Windjammer Brushless Blower 5.7" 120VAC 103CFM 51 in.H2O Bypass Elec CL

Ametek

5 in Stock, Ready to Ship.





Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders. Additional fees may apply for LTL residential shipments.

Out of stock items typically ship within 4-6 weeks.

Please contact us for quantity-based discounts.


PRODUCT DETAILS

Model  Windjammer (5.7"/145mm)
Output  Bypass
Voltage 120 VAC
Speed Control 0 - 10 VDC
Speed Regulation Closed Loop
Option Card No
Stages 2
Flow Classification High Flow
Discharge Size 1.75" Dia.
Performance Class 250 Watt
Electrical Connections 6-Cavity Post Header for 4-Wire Harness with Two Power Leads and Two Speed Command Leads
Skid Qty please contact us
Max Pressure in.H2O 51.208
Max Pressure Kpa 12.74
Max Pressure mbar 127.43
Max Flow SCFM 103.93
Max Flow litres/sec 49.02
Max Flow m3/hour 176.58



The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

The Ametek Windjammer brushless DC blower model/part # 116642-03 has been commonly used in laboratory equipment (e.g., glove box, isolation and containment devices) and medical devices. Ametek 116642-03 is packaged and shipped with the Ametek mating wiring harness part number 39650 and is RoHS Compliant.

See the Ametek 116642-03 Windjammer catalog page with technical specifications and diagrams here.

If you need additional resources (e.g., cad drawings), please contact us.
