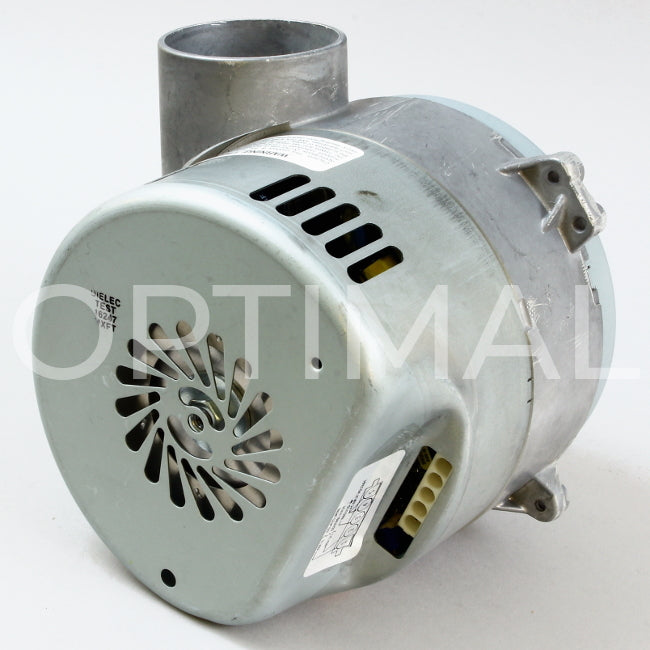

119155-06 Ametek Windjammer Brushless Blower 5.7" 240VAC 268CFM 45.6 in.H2O Bypass Electrical Closed Loop_Optimal Distribution
119155-06 Ametek Windjammer Brushless Blower 5.7" 240VAC 268CFM 45.6 in.H2O Bypass Electrical Closed Loop_Optimal Distribution

Product may differ slightly from picture.

119155-06 Ametek Windjammer Brushless Blower 5.7" 240VAC 268CFM 45 in.H2O Bypass Elec CL

Ametek

Not in Stock, but Available for Order.




In Stock Again
Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders. Additional fees may apply for LTL residential shipments.

Out of stock items typically ship within 4-6 weeks.

Please contact us for quantity-based discounts.


PRODUCT DETAILS

Model  Windjammer (5.7"/145mm)
Output  Bypass
Voltage 240 VAC
Speed Control 0 - 10 VDC
Speed Regulation Closed Loop
Option Card Yes - Analog Emulation
Stages 1
Flow Classification Ultra High flow
Discharge Size 2.50" Dia.
Performance Class 1200 Watt
Electrical Connections 5-Cavity Post Header for Two (2) Power and One (1) Ground Lead Plus 3-Cavity Option Card Header for Two (2) 1 to 10 VDC Speed Command Signal Input
Skid Qty please contact us
Max Pressure in.H2O 45.6
Max Pressure Kpa 11.35
Max Pressure mbar 113.47
Max Flow SCFM 268
Max Flow litres/sec 126.41
Max Flow m3/hour 455.33



This blower is used in printing applications including the Mitsubishi Diamond TP Perfector with part number 119155.



See advanced technical specifications and diagrams here.

If you need additional resources (e.g., cad drawings), please contact us.

This part is RoHS Compliant.
