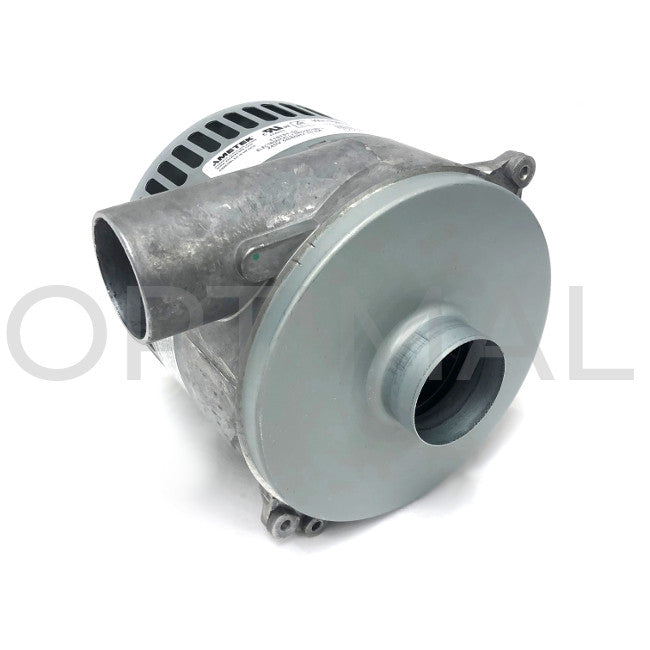

119151-51 Ametek Windjammer Brushless Blower 5.7" 240 VAC 180CFM 61 in.H2O Bypass Elec CL
4 pieces in stock.
In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.
Out of stock items typically ship within 2-3 weeks.
Please contact us for quantity-based discounts.
Free ground shipping is available on most online orders of $100 or more in the continental U.S.
|Speed Control||0 - 10 VDC|
|Speed Regulation||Closed Loop|
|Flow Classification||High Flow|
|Discharge Size||1.75" Dia.|
|Performance Class||1200 Watt|
|Electrical Connections||5-Cavity Post Header for Two (2) Power and Two (2) 0 to 10 VDC Command Signal Inputs|
|Skid Qty||please contact us|
|Max Pressure in.H2O||61|
|Max Pressure Kpa||15.18|
|Max Pressure mbar||151.79|
|Max Flow SCFM||180|
|Max Flow litres/sec||84.9|
|Max Flow m3/hour||305.82|
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

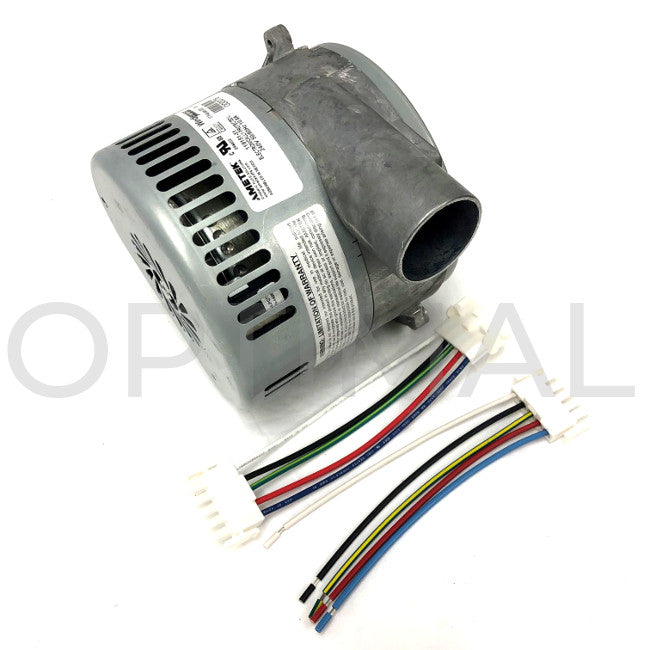

The Ametek Windjammer brushless DC blower model/part # 119151-51 is manufactured with a 1.75” diameter inlet tube on the working fan shell and is packaged and shipped with Ametek mating connector part numbers 5-39021 and 39680. This part is RoHS and REACH Compliant. 119151-51 replaces the Ametek Windjammer blower models 119151-00, 119151-01, and 119151-02.
See the Ametek 119151-51 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
