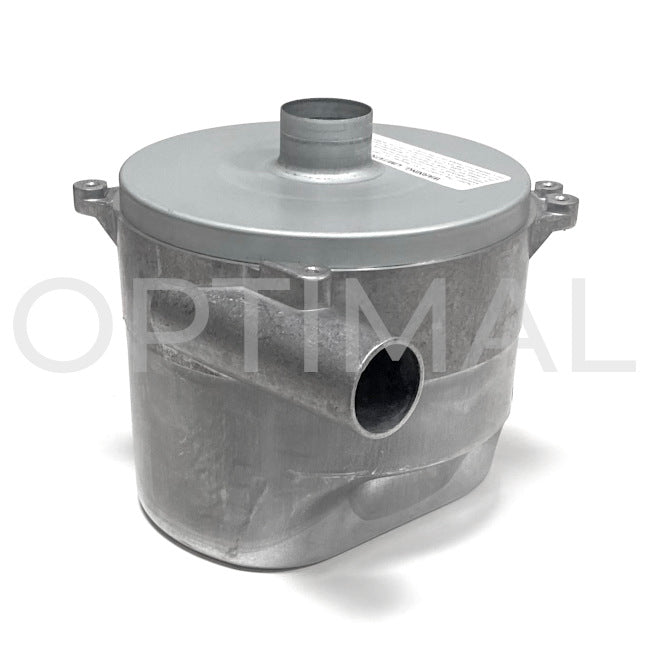

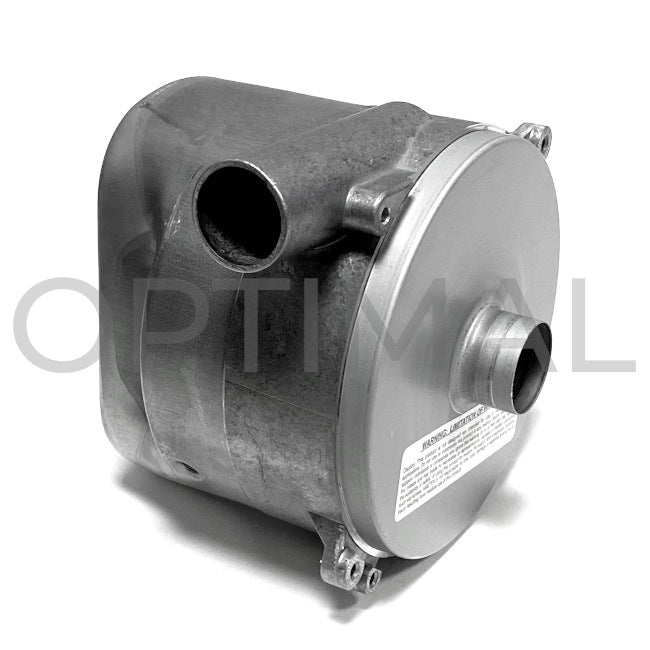

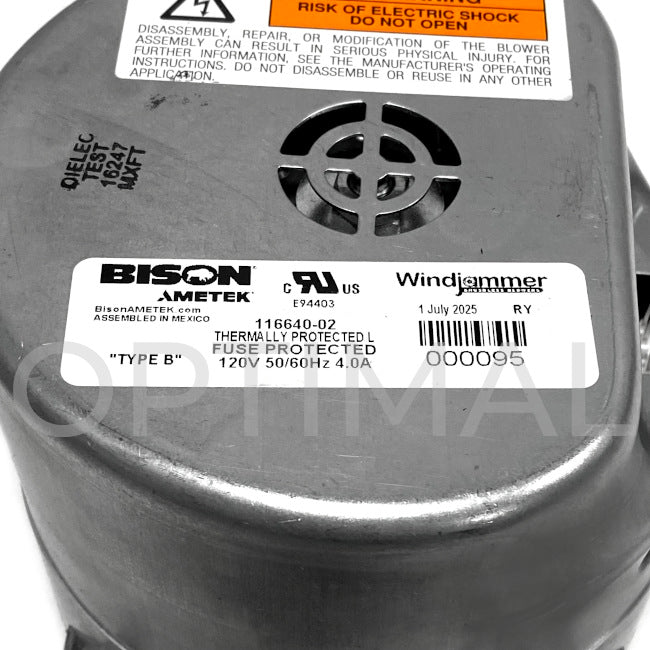

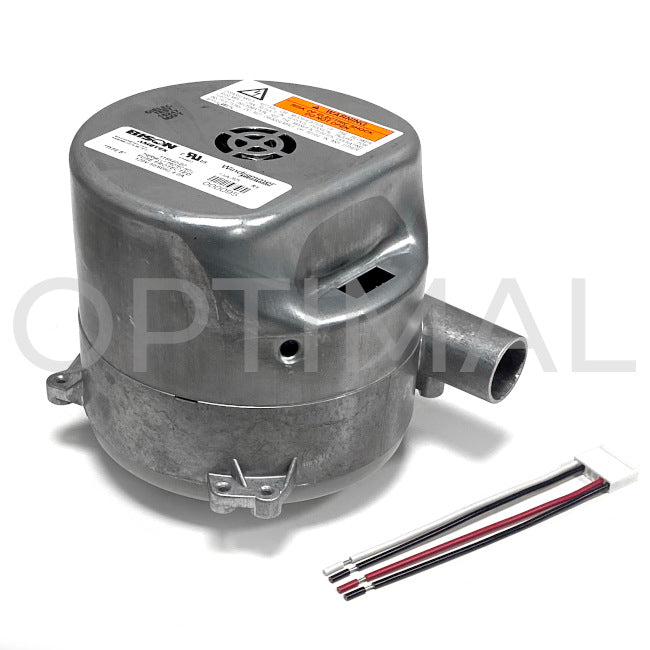

116640-02 Ametek Windjammer Brushless Blower 5.7" 120VAC 58.61CFM 20.06 in.H2O Bypass Electrical Closed Loop_Optimal Distribution

Product may differ slightly from picture.

116640-02 Ametek Windjammer Brushless Blower 5.7" 120VAC 58CFM 20 in.H2O Bypass Elec CL

Ametek

Not in Stock, but Available for Order.




In Stock Again
Free ground shipping and free LTL truck freight is available for most online orders of $100 or more in the continental U.S.

In-stock small-package items ship same day, 4:30 pm EST cut-off. In-stock items that ship LTL can also ship same day, 2:30 pm EST cut-off. Please call us immediately to schedule these shipments. We can expedite some shipments for next-day and possibly SAME-DAY delivery, for domestic orders. Additional fees may apply for LTL residential shipments.

Out of stock items typically ship within 4-6 weeks.

Please contact us for quantity-based discounts.


PRODUCT DETAILS

Model  Windjammer (5.7"/145mm)
Output  Bypass
Voltage 120 VAC
Speed Control 0 - 10 VDC
Speed Regulation Closed Loop
Option Card No
Stages 1
Flow Classification Standard Flow
Discharge Size 1.25" Dia.
Performance Class 250 Watt
Electrical Connections 6-Cavity Post Header for 4-Wire Harness with Two Power Leads and Two Speed Command Leads
Skid Qty please contact us
Max Pressure in.H2O 20.06
Max Pressure Kpa 4.99
Max Pressure mbar 49.92
Max Flow SCFM 58.614
Max Flow litres/sec 27.65
Max Flow m3/hour 99.59



See advanced technical specifications and diagrams here.

If you need additional resources (e.g., cad drawings), please contact us.

This part is RoHS Compliant.
