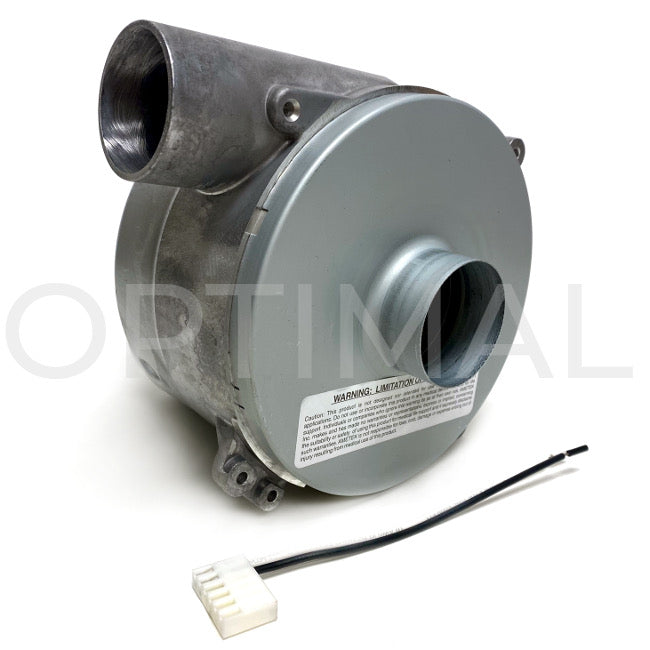

116637-53 Ametek Windjammer Brushless Blower 5.7" 120VAC 130CFM 26 in.H2O Bypass Mech CL
5 in Stock, Ready to Ship.
PRODUCT DETAILS
Model | Windjammer (5.7"/145mm) |
Output | Bypass |
Voltage | 120 VAC |
Speed Control | Mechanical |
Speed Regulation | Closed Loop |
Option Card | No |
Stages | 1 |
Flow Classification | High Flow |
Discharge Size | 1.75" Dia. |
Performance Class | 250 Watt |
Electrical Connections | 6-Cavity Post Header for Two Power Leads |
Skid Qty | please contact us |
Max Pressure in.H2O | 26.015 |
Max Pressure Kpa | 6.47 |
Max Pressure mbar | 64.74 |
Max Flow SCFM | 130.514 |
Max Flow litres/sec | 61.56 |
Max Flow m3/hour | 221.74 |
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

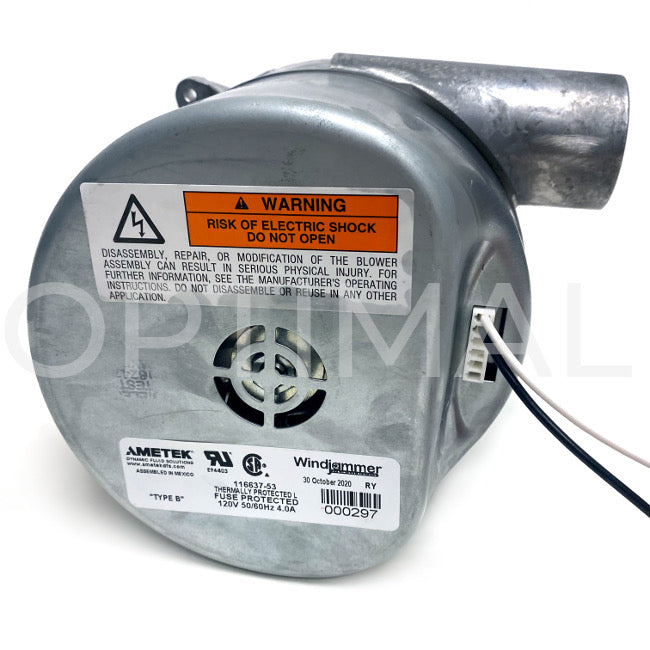

The Ametek Windjammer brushless DC blower model/part # 116637-53 is packaged and shipped with the Ametek mating wiring harness part number 39649 and is RoHS Compliant. 116637-53 is the exact replacement for the Ametek Windjammer models 116637-01 and 116637-03.
See the Ametek 116637-53 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
