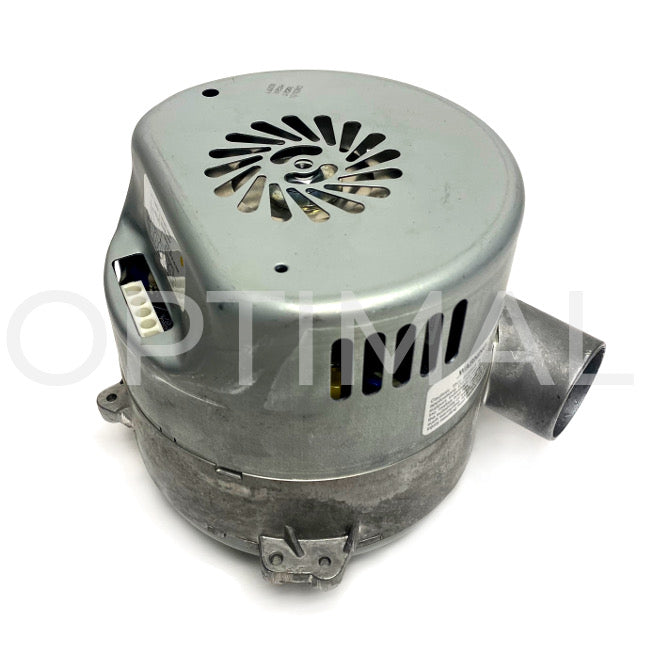

Product may differ slightly from picture.
119101-01 Ametek Windjammer Brushless Blower 5.7" 120VAC 140CFM 38 in.H2O Bypass Elec CL
4 in Stock, Ready to Ship.
PRODUCT DETAILS
| Model | Windjammer (5.7"/145mm) |
| Output | Bypass |
| Voltage | 120 VAC |
| Speed Control | 0 - 10 VDC |
| Speed Regulation | Closed Loop |
| Option Card | No |
| Stages | 1 |
| Flow Classification | High Flow |
| Discharge Size | 1.75" Dia. |
| Performance Class | 800 Watt |
| Electrical Connections | 5-Cavity Post Header for Two (2) Power and Two (2) 0 to 10 VDC Command Signal Inputs |
| Skid Qty | please contact us |
| Max Pressure in.H2O | 38.83 |
| Max Pressure Kpa | 9.66 |
| Max Pressure mbar | 96.62 |
| Max Flow SCFM | 140.529 |
| Max Flow litres/sec | 66.29 |
| Max Flow m3/hour | 238.76 |
The Ametek DFS Windjammer 5.7”/145mm brushless DC blower motor is a compact, reliable, fully controllable, and long-lasting solution for air handling. In fact, Windjammer blowers can operate for 20,000 hours at continuous duty. Some of the major industries in which these blowers appear are: (a) healthcare (medical and dental); (b) materials handling; (c) air sampling; (d) fume evacuation; and (e) business machines (e.g., packaging and printing). However, innovative original equipment manufacturers and entrepreneurs frequently design new machines requiring brushless blower motors, thereby adding new, exciting applications. We work with many such companies in helping them identify the best air-moving product for their application, by isolating the various features and options available among the Ametek Windjammer brushless DC blowers (see the full catalog here).

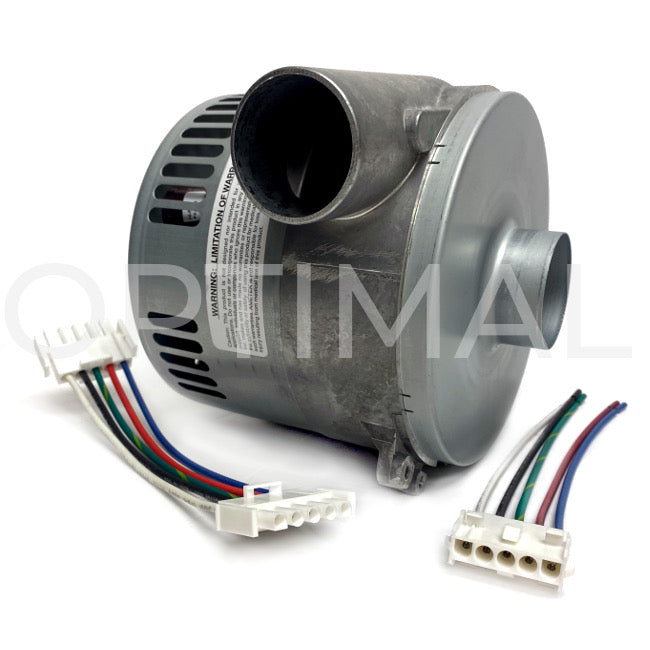

The Ametek Windjammer 5.7" brushless DC blower model/part # 119101-01 is the distribution version of part number 119101-00. All performance features, fit, and functionality are identical. The only difference between the -00 and the -01 model is that the 119101-01 is packaged with the two mating connectors / wiring harness part numbers 5-39016 and 39796 (119101-00 is packaged with only 5-39016). The 119101-01 Windjammer blower is manufactured with a 1.75" diameter inlet tube on the working fan shell. This part is RoHS and REACH Compliant.
See the Ametek 119101-01 Windjammer catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
