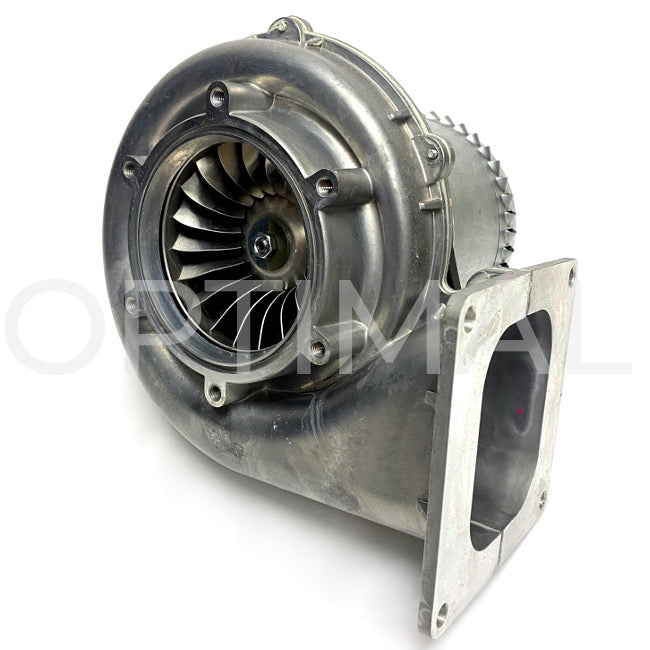

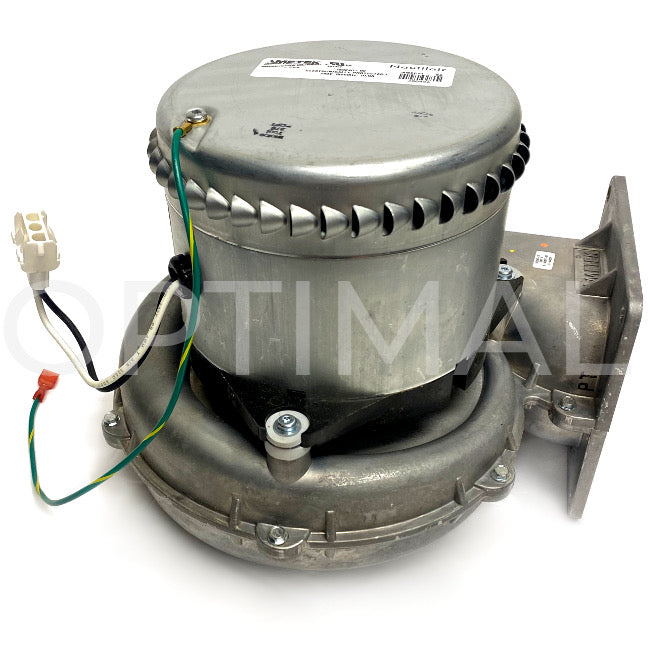

150240-00 Ametek Nautilair Brushless Blower 8.9" 240VAC 560CFM 15 in.H2O Mech CL
3 in Stock, Ready to Ship.
PRODUCT DETAILS
| Model | Nautilair (8.9"/226mm) |
| Output | - |
| Voltage | 240 VAC |
| Speed Control | Mechanical |
| Speed Regulation | Closed Loop |
| Option Card | No |
| Stages | 1 |
| Flow Classification | High Output |
| Discharge Size | 5.50" x 5.50" |
| Performance Class | High Output |
| Electrical Connections | Two Flying Power Leads with 3-Housing Connector |
| Skid Qty | 32 |
| Max Pressure in.H2O | 15.82 |
| Max Pressure Kpa | 3.94 |
| Max Pressure mbar | 39.37 |
| Max Flow SCFM | 560 |
| Max Flow litres/sec | 264.15 |
| Max Flow m3/hour | 951.44 |
Ametek DFS Nautilair brushless DC variable speed blowers have been engineered to provide practical, compact, and efficient combustion solutions, and their performance levels have tested higher than many competitor blowers of the same size. Nautilair blowers are designed to deliver a precise, measured level of air and fuel mixtures in gas-fired burner systems and come in three size options: (a) 7.6” / 193 mm; (b) 8.9” / 226 mm; and (c) 12.3” / 312 mm. All Nautilair blowers are programmable for various speed control profiles and allow for three primary speed signals: 0-10VDC electrical analog; pulse width modulation (PWM); and mechanical potentiometer (directly on the blower unit). The Ametek Nautilair brushless DC combustion blower motors are used in a variety of applications, including residential and commercial heaters and boilers, food service equipment such as ovens, and even fuel cells, among many others.
The Ametek DFS Nautilair 8.9” (226 mm) brushless blower model / part number 150240-00 is RoHS and REACH Compliant. Ametek 150240-00 is a suitable replacement for part Ametek Nautilair part number 150240-02 (MultiVac packaging equipment). Please contact us for details.
See the Ametek 150240-00 Nautilair catalog page with technical specifications and diagrams here.
If you need additional resources (e.g., cad drawings), please contact us.
See Ametek DFS’s full catalog of Nautilair brushless blowers available here (click).
